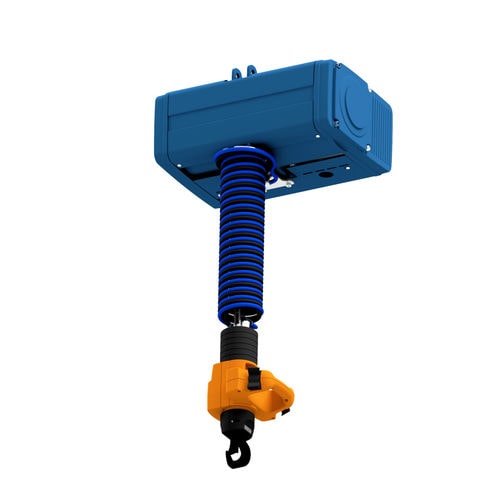

Pneumatic rope balancers
The pneumatic rope balancer is especially suitable for positioning loads with great sensitivity and for complex joining and assembly tasks. The load suspended on the rope is balanced using compressed air via a rope drum. This allows components to be positioned with extremely high precision.
Design
•ceiling-mounted movable on a suspension crane
•floor-mounted in combination with a pivot arm or slewing crane
Control options
•one, two or multiple load balancing control
•up/down control with and without empty load balancing
•hand force detection control
•safety functions, such as gripper release
•and many more
Special features
•precise and smooth positioning of loads
•individual guidance directly on the component
•fast transfer of loads with short cycle times
•compact design, control and drive all in one housing
•speed limiter as safety device: prevents unacceptably high lifting speeds
