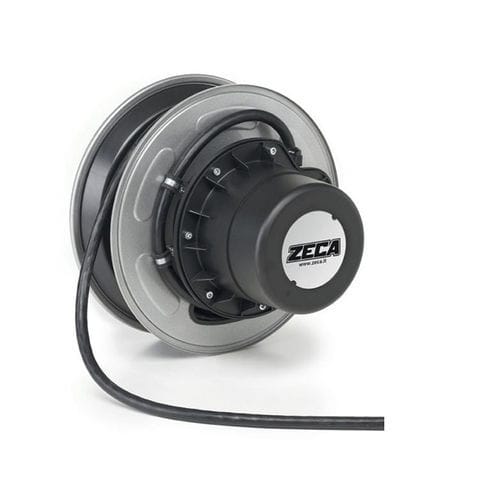

Cable reel 1400
motorizedswivelingsteel

cable reel
cable reel
cable reel
cable reel
cable reel
cable reel
cable reel
Add to favorites
Compare this product


Characteristics

Type
cable
Drive mechanism
motorized
Configuration
swiveling
Reel material
steel, aluminum
Hose/cable length

Min.: 10 m
(32'09" )

Max.: 25 m
(82'00" )

Diameter

Min.: 8 mm
(0.3 in)

Max.: 17.5 mm
(0.7 in)

Description

Steel structure with epoxy and technopolymer painting. Side fixing flange in aluminum. Collectors with 20 – 50 – 100A capacity. Long lasting steel spring. Degree of protection IP65. Supplied without cable or with cable H05 VV-F and H07 RN-F. Suitable for rewinding cables from 1 to 12 conductors. Ambient temperature of use: -5 ° C / + 50 ° C. Maximum rewind speed 30 m / min. Collector insulation voltage 2.5 KV. Cable reel supplied without bracket, without cable guide entry and without detent. These accessories can be purchased separately. Only suitable for manual use. For wall installation. For wall, floor or ceiling fixing. • Complete with stop tooth
