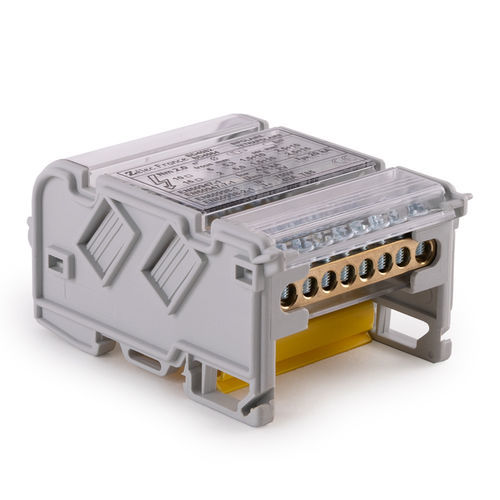

Power distribution block BD4084

4 x 40 A 6 modules 8 connections distribution block Modular distribution blocks are used to bring together incoming and outgoing electrical circuits at a single point. They are used in tertiary, industrial and photovoltaic applications. This 40 A rated quadripolar modular terminal block has 8 connections per phase. The operating voltage is 1000 Vac/dc. The Zelec range of distribution blocks extends from 40 A to 160 A in the bipolar and quadripolar versions. They can be snapped onto DIN rails and are sold with adapters for mounting onto base plates. Incoming and outgoing cables are flexible cables with ferrules or rigid cables. Their sloping bars make them easy to connect. The removable base ensures the safety of property and people We give you the option to increase the number of neutral connections on all the quadripolar distribution block from our range. A rated short-time withstand current that is among the highest on the market For your installation to be compliant, the splitter’s rated short-time withstand current must be greater than or equal to the short-circuit current. Our range of distributors offers a rated short-time withstand current up to 13 kA, covering most applications on the market. The rated short-time withstand current is the ICW. This current relates to the busbars. The Icc is the value of the short-circuit current. This value is essential for switchboard design (the intensity of the short-circuit current given by the transformer power, the length of the cables, their diameter, etc.).
