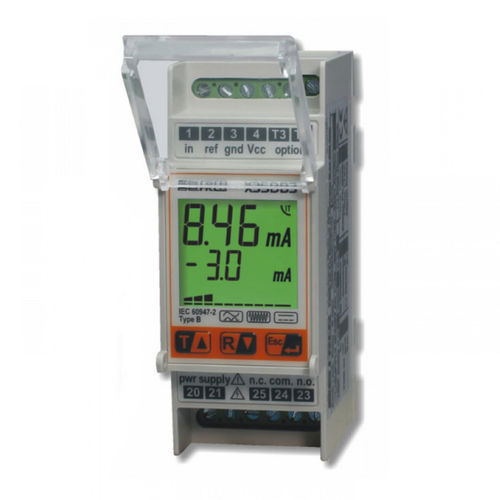

Earth-leakage protection relay X35DB34DCR102

ACDIN railIEC

2 modules 230 Vac from 30 mA to 5 A, B type earth leakage relay Type B earth leakage relays are essential components in industrial electrical installations or for EVSE applications. They offer advanced protection against leakage currents, ensuring the safety of people and electrical equipment. Unlike type A and AC earth leakage relays, type B earth leakage relays are able to detect residual currents with both DC and AC components. This relay is used in conjunction with a trip protection device (automatic power cut-off) and provides protection against indirect contact. The aim is therefore to limit earth leakage currents to ensure the safety of people and property. This makes it a versatile, high-performance solution, suitable for a wide range of applications (vehicle charging points, heating systems, variable speed control, etc.). Increased sensitivity The type B earth leakage relay is highly sensitive for detecting even small leakage currents. Its detection range of 30 mA to 3 A (depending on the differential toroid) means it can react quickly in the event of an earth leak. This sensitivity guarantees optimum protection, even in situations where residual currents are low. High trigger speed With a fully configurable triggering speed from 20 ms (instantaneous) to 30 seconds, the installation is optimally protected. A high trigger speed means a faster response to electrical defaults. This considerably reduces the risk of electrocution or fire by enabling the power supply to be cut off quickly.
