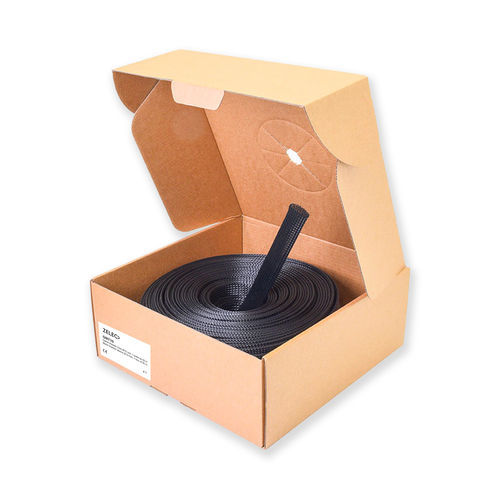

Protection sleeve GNT series

thermal protectionanti-vibrationwear-resistant

Product description
Braided sleeve provides a professional solution for bundling, organising and protecting cables. This flexible sleeve is manufactured from braided polyethylene terephthalate (PET) monofilaments, giving it an expandable, durable and breathable mesh structure. The design adapts easily to varying diameters. The braided sleeve range covers diameters from Ø6 mm to Ø38 mm.

Key features

• Excellent mechanical strength: Fine multi-filament braid creates a dense structure providing protection against abrasion and resistance to heat, vibrations, repeated friction and chemical agents.
• High flexibility and expandability: Expandability of 180–300% of the nominal diameter, allowing adaptation to irregular cable bundles and complex shapes.
• Ease of installation: Tight braiding and quality PET filaments enable easy cable insertion and routing within the sleeve.

Other information

• Availability: Sold individually, in packs of 1.
• Packaging: 1 box of 100 m.
• Other sizes available: Ø8 mm, Ø10 mm, Ø12 mm, Ø16 mm, Ø20 mm, Ø25 mm, Ø32 mm, Ø38 mm.

Technical specifications

• Manufacturer: Zelec
• Diameter: Ø6 mm
• Length: 100 m
• Weight: 765 g
• Colour: Black
• Duct wall thickness: 0.65 ±0.05 mm
• Strand diameter: Ø0.25 mm
• Materials: Polyethylene terephthalate (PET)
• Operating temperature: -40°C to +150°C
• Storage temperature: -20°C to +70°C
• Halogen-free: Yes
• UV resistance: Yes
• Standards: UL94 V2, FMVSS302, VW-1, CE, RoHS, REACH
• Cut: Using a hot cutting tool
• Packaging detail: 1 box of 100 m
• Minimum order: 1 unit
