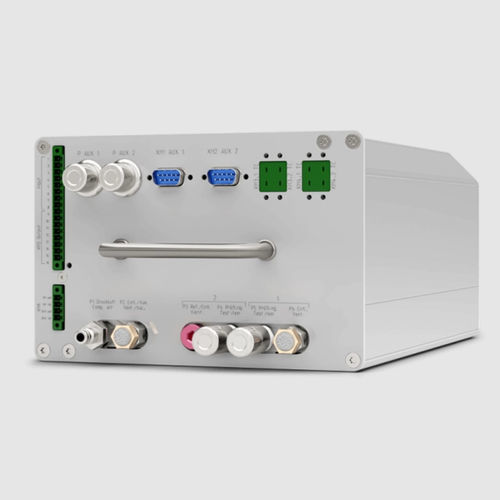

Pressure measuring device ZEDcore

temperaturedifferential pressuregas

By integrating the ZEDcore in plug-and-play mode in all ZED devices (apart from ZEDeco), your leak testing becomes as flexible as possible without requiring complicated installation. This modularity allows measuring circuits to be exchanged quickly and easily in one device or a measuring module to be used across different devices. Experience the unimagined flexibility of ZEDcore for the ZED device family. APPLICATION EXAMPLES Automotive: Engines, cylinder heads, gears, diaphragms, auxiliary heaters, power adapters, hybrid drives, heat exchangers, control electronics, batteries, lines, valves, fuel cells, pumps, etc. Medical technology: Catheters, dialysis filters/boxes, flushing systems, hose systems, secretion containers, syringes, external lung machines, etc. Packaging/cosmetics: Dispensing pumps, plastic bottles, cartridges, etc. Household appliances: Water distributors, water pumps, gas valves/fittings, stoves, compressors, etc. General industry: Cylinders, safety valves, non-return valves, couplings, grippers, ball valves, seals, throttle pins, etc. INTERFACES Auxiliary Temperature sensor Interface to the control unit Dimensions (H x W x D): 139 x 235 x 315 mm Weight: approx. 8 – 10 kg Power supply: 24 VDC (+10 / -5%) 5 A Test medium: Compressed air (oil and water-free according to ISO 8573-1 class 3)
