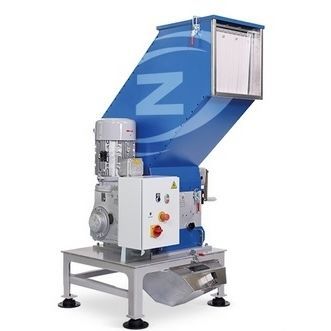

Rotor granulator GSL 300
low-speed

rotor granulator
rotor granulator
rotor granulator
rotor granulator
rotor granulator
rotor granulator
rotor granulator
Add to favorites
Compare this product


Characteristics

Type
rotor
Other characteristics
low-speed
Final grain size

6 mm (0 in)

Description

The slow speed granulators in the GSL 300 range feature a staggered 300 mm diameter rotor with widths ranging from 400 to 800 mm. The rotor is directly driven by a geared motor. The low rotor speed reduces the noise level of the machine and creates less dust while grinding. The special design knives of the GSL series can be sharpened easily and do not need adjustment afterwards. The material is fed via a sound absorbing feed hopper that can be tailored to fit various applications and feeding ways. Depending on the requirements the machines can be fitted with a wide variety of hoppers, they are mounted on either low or high level base frames with matching suction bins or bag filling adapters. Quick snap fasteners and hand screws make access to the machine for cleaning and maintenance fast and easy. Applications The GSL slow speed granulators of the 300 series are mainly used in injection and blow molding processes as beside the press machines to grind runners and sprues. But they can be used as low noise central granulators for small throughput requirements as well. The stronger design of the 300 series GSLs allow them to be used for stronger and thicker materials while offering the same advantages regarding low noise and dust as the smaller GSL machines. All GSL models can be equipped with a built in blower system in case a vacuum loading system is not available, or to transport the ground material to bags for storage. • Direct driven staggered rotor • Special knife design makes adjustment unnecessary • Easy access for maintenance and cleaning • Slow rotor speed creates less noise and dust • Easily customizable to suit different applications

Catalogs
