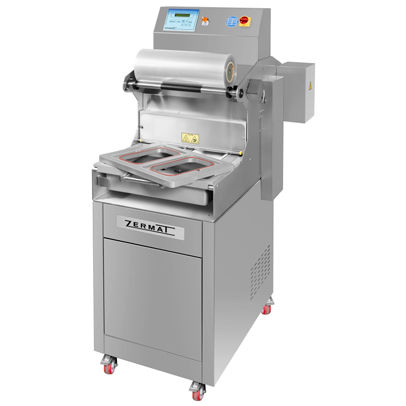

Linear array tray sealer TB Series
manualvacuumcompact

linear array tray sealer
linear array tray sealer
linear array tray sealer
linear array tray sealer
linear array tray sealer
linear array tray sealer
linear array tray sealer
Add to favorites
Compare this product


Characteristics

Type
linear array
Operational mode
manual
Other characteristics
vacuum, compact

Description

Robust construction in stainless steel. Control panel with 20 programs. Progressive air inlet -softair-. Sealing time control. Easy maintenance. Robust construction in stainless steel. Control panel with 20 programs. Technical specifications • External dimensions:630 x 980 x 1.490 mm • Max. tray dimensions to be packed: 1/2 Gr. 325 x 265 x 115 mm. • Power: 2’3 kw • Vacuum pump: Busch 40 m3/h (opcional 63m3/h - 100m3/h) • Weight: 235 Kg General information • Robustness and reliability. • Interchangeable dies in a few minutes. • Compact and ergonomic design. • Construction in stainless steel and anodized aluminium. • Sensor vacuum control. • Very compact equipment, it needs minimal space. • Vacuum pump integrated inside the cabinet. • Control panel with storable programs. • Programmable vacuum level and percentage of gas injection. • Perimeter cut of the top film in the tray contour. • Manufacture of dies adequate to each tray. • Optional sealing system with film flap for easy-open. • Easy and intuitive control panel. • Simple and robust machine with ergonomic design for the user. • 10 storable programs. • Integrated system for automatic winding and tensioning of the top film. • Sealing time control (seconds) and adjustable die temperature. • Control panel with stop button to interrupt the cycle (with or without sealing). • Film reel-picker arm on the back. This tightens the film at the time of sealing for a better finish. * This equipment requires electrical + pneumatic connection (compressed air at 6-8 bar pressure) Options • ​Extra dies to work in different formats (as required or pre-designed). • Inlet air filter unit. • 50lts compressor. Special vacuum pumps.
