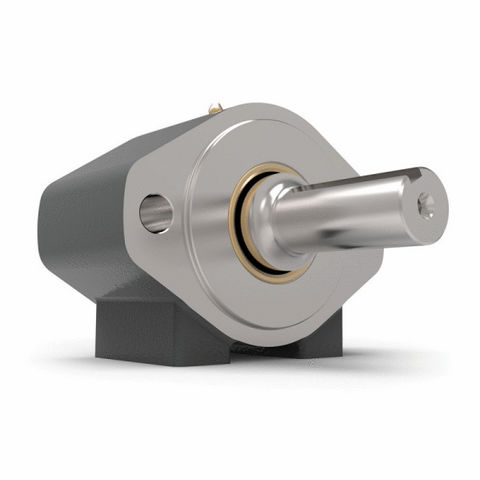

Hydraulic adapter 200 series

shaft

The Model 200 Series of SAE A mount Overhung Load Adaptors (OHLA®) provide radial and axial load support to extend the lifespan of mobile hydraulic systems. Model 200 OHLAs are compatible with shaft diameters up to 1” and provide the following features: Accepts speeds up to 3800 RPM with proper lubrication (contact factory for higher speeds) Deep-grooved ball bearings Input bore dimensions including 1” keyed, 5/8” keyed, 3/4” keyed and 9 tooth 16/32 spline 2-bolt mount Our in-stock standard load adaptors are available for immediate shipment. Benefits of the 200-Series Overhung Load Adaptors The 200-Series is offered standard with multiple configurations to meet your specifications. Special configurations are available with no minimum order quantity. All Zero-Max Overhung Load Adaptors are designed for shaft horizontal mounting and use standard grease lubrication. Contact factory for vertical mounting. The 200-Series of OHLA offer the following benefits: SAE A - 2-bolt mounting May be either Face-mounted or Foot-mounted Provides a sturdy mounting base for the motor or pump Supports radial and axial loads in extreme conditions Protects pump or motor shaft seal from harmful contaminants Reduces downtime and maintenance costs with reliable operation
