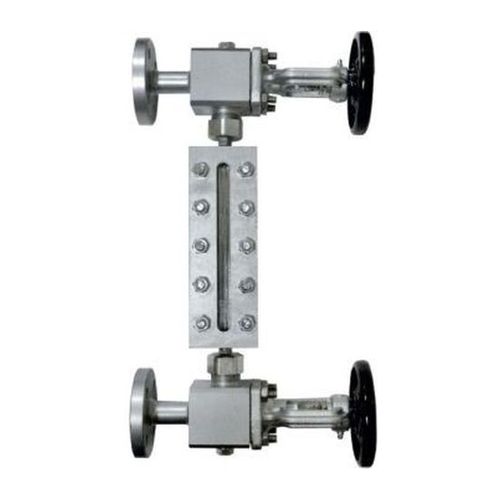

Liquids level gauge zGAU 716

bypassglassflange

Material: Cast steel, acid resistant steel, alloy steel Nominal pressure: 16, 40, 63 bar Nominal diameter: 0 - XI Temperature range: 0…+300°C Working position: Vertical Liquid level gauge with reflex or transparent glass. Features •compact design •multifunctional •possibility to adapt the connections •modern head design •possibility to adapt the liquid level gauges to other lengths than standard ones •in the version with flanged connections, the connection flanges of the heads are drilled at PN40 as for DN20 and made with type B1 sealing surfaces with projection according to PN EN 1092-1 as a standard •in the version with threaded connections, the ½” (GZ) threaded connection as a standard •in the version with welded connections, the possibility of making the connection according to the customer’s needs
