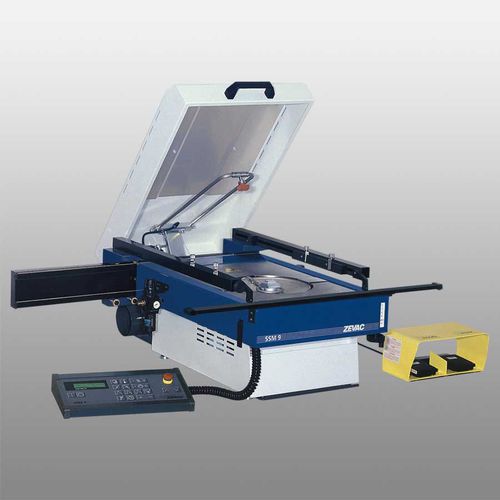

Stand-alone soldering and desoldering station SSM 9

desktop

The SSM 9 is used for selective soldering and desoldering of multipolar trough hole components (THT). Due to the programmable parameters precise and repeatable user independent results can be achieved. • Flexible solutions for standard-or irregular shaped components • Up to 10 programmable parameters can be stored and recalled on demand • Easy height adjustment of the printed circuit board over the flow well • Stable construction: Easy to use and stable table top machine • Increase of the efficiency due to quick positioning with the air nozzle, simultaneous fusing and soldering of all connections, reliable blowing out of the holes from above, right after removing the component • Also irregular shaped boards up to a size of 840 x 600 mm can be fixed on the quick locking board holder • Blow out option to clean the solder joints after removal of a connector • Application specific tooling for any kind of component also on dense populated boards, including multi soldering solutions, for wetting of defined positions • Optional preheater module PH 4, especially for the lead-free applications • Lead-free retrofit: Already installed machines can be retrofitted for lead-free applications Programmable parameters Due to up to ten programmable parameters as soldering temperature, cycle time, wave height, ramp up and ramp down, operator independent, precise and repeatable soldering results occur with the SSM 9. Application Range Repairs Damaged components can be replaced
