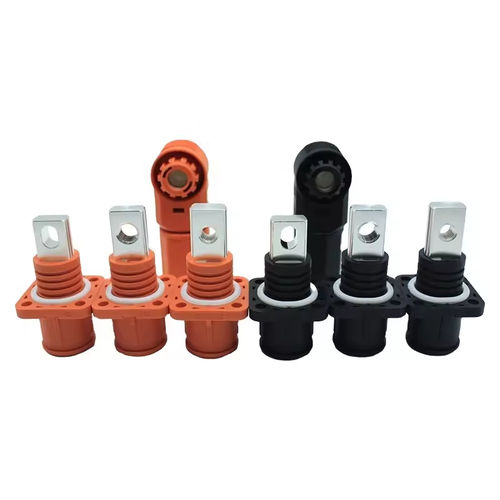

Electrical power supply connector BSBE80-250ASocketfemalemale
Add to favorites
Compare this product
Characteristics
- Type
- electrical power supply
- Format
- Socket
- Connection type
- female, male
- Electrical characteristics
- DC, high-voltage
- Material
- plastic, copper, silver-plated
- Product applications
- terminal, for battery, energy storage
- Domain
- industrial, commercial, for photovoltaic applications
- Protection class
- IP67
- Other characteristics
- waterproof
- Primary current
250 A
- Voltage
1,500 V
- Operating temperature
Min.: -40 °C
(-40 °F)Max.: 125 °C
(257 °F)
Description
Rated Voltage: 1500V
Rated Current: 120A，150A，250A
Adaptor diameter：25mm2，35mm2，50mm2
Insert at any angle of 360 ° and rotate 360 ° after insertion
Protection grade：IP67
Plug and pull life：500 times
Authentication certificate：UL, CE, TUV
Color: Red, Orange, Black
