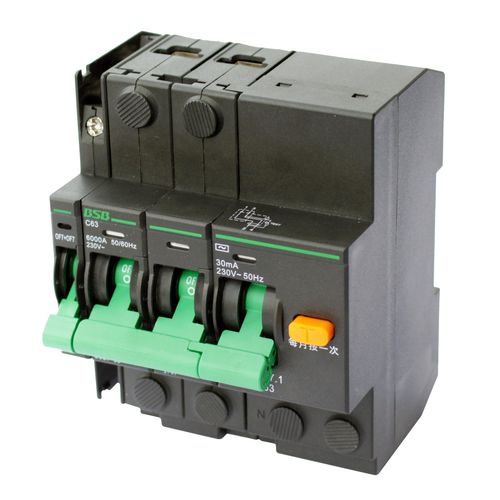

Hydraulic-magnetic circuit breaker BSB7 Series
overloadshort-circuitAC/DC

hydraulic-magnetic circuit breaker
hydraulic-magnetic circuit breaker
Add to favorites
Compare this product

Characteristics

Type
hydraulic-magnetic
Electrical characteristics
short-circuit, overload, with 1-4 poles, AC/DC
Operating mode
manual reset
Other characteristics
DIN rail
Applications
distribution, for network protection, for railway applications
Current

Min.: 1 A

Max.: 63 A

VDC

80 V, 125 V, 175 V

VAC

230 V, 400 V

Description

BSB7 series hydraulic circuit breakers are suitable for distribution lines with rated AC working voltage up to 400V, single-pole DC voltage up to 125V, and bipolar voltage up to 250V, and rated current up to 63A, for providing accurate and reliable protection.It is widely used in the overload and short circuit protection of military equipment electrical system, state grid power distribution, industrial automation equipment, communication equipment, railway signal and power distribution, building dacha, dc equipment, new energy and other equipment. Description Rated Current (A): 1,3,6,10,15,16,20,25,30,32,40,50,60,63 Poles: 1-4P Voltage(V): AC230/DC80/DC125 /AC400 Breaking Capacity: 6000A Mounting type: 35mm standard rail Operating Temperature: -40℃ to +85℃
