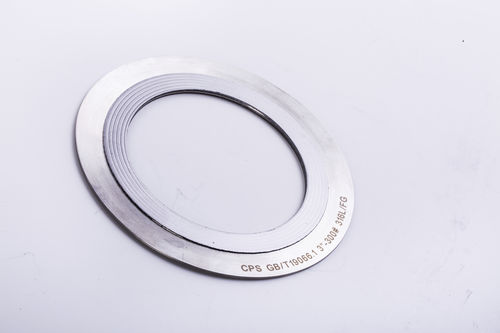

Graphite gasket CPS7020carbonsteelstainless steel
Add to favorites
Compare this product
Characteristics
- Material
- graphite, carbon, steel, stainless steel, PTFE
- Application
- metal, for heat exchangers, nitrogen cylinder
- Fluid
- gas, oxygen
- Other characteristics
- corrugated
- Temperature limit
Min.: -196 °C
(-321 °F)Max.: 650 °C
(1,202 °F)- Pressure limit
Min.: 0 MPa
Max.: 42 MPa
- Diameter
Min.: 25 mm
(0.984 in)Max.: 4,000 mm
(157.48 in)
Description
The gaskets has a corrugated metal core normally stainless steel or carbon steel, with expanded graphite or PTFE facings. It is new a style gasket with wide chemical compatibility for standard pipe line duties, heat exchangers vessels and reactors.
Application
Suitable for sealing process pipeline (such as natural gas, hydrogen, nitrogen, oxygen, steam), also apply to the large size of the heat exchanger gaskets.
Certification
API 6FB
VDI 2440
