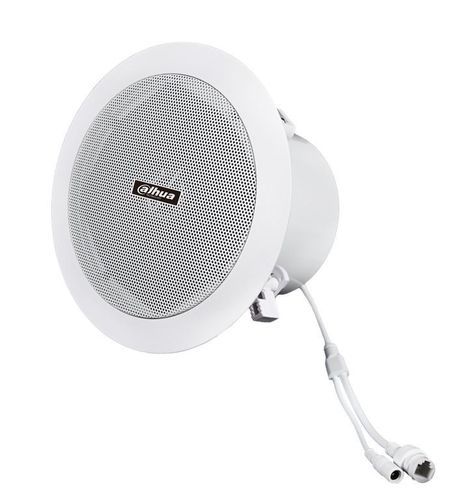

Ceiling loudspeaker VCS-SPOE20

publicSIPnetwork

Product Overview

• Model: VCS-SPOE20
• Type: IP in-ceiling speaker
• Rated Power: 20 W
• Power Supply: PoE (IEEE 802.3at) or 24 VDC 2 A (standby)
• On-board Storage: 512 MB (expandable) + TF card support
• Ingress Protection: IP6X
• Material: Aviation aluminum
• Color: White

Description
IP in-ceiling speaker engineered for networked audio and public-address systems. Supports PoE power delivery and an auxiliary 24 VDC input for flexible installation. On-board expandable storage and TF card support allow local audio playback and message scheduling. Constructed in aviation-grade aluminum for consistent performance in indoor ceiling environments.

Key Points

• Rated power: 20 W
• Dual power modes: PoE (IEEE 802.3at) or 24 VDC 2 A
• Expandable storage: 512 MB on-board + TF card
• Protection class: IP6X for dust resistance
• Material: aviation aluminum; Color: white

Speaker
Max Sound Pressure Level: 80 dB
SNR: 75 dB
Frequency response: 100 Hz–18 kHz
Coverage pattern: Horizontal 70°; Vertical 100°
Speaker output: 20 W

Interface
TF card interface for local storage and playback
24 V auxiliary input (24 VDC, 2 A) and PoE power support

Network
1 × RJ45 network port
Supported protocols: TCP, UDP, ARP, ICMP, IGMP, DHCP, HTTP, SIP, ONVIF

General
Audio formats: MP3, G.711a/u
On-board storage: 512 MB (expandable) + TF card support
Power input: 24 VDC, 1 A (24 W) or PoE IEEE 802.3at Class 4
Power consumption: 20 W
Operating temperature: –40 °C to +60 °C
Operating humidity: 60%–95% RH (non-condensing)
Ingress protection: IP6X
Certifications: CE EMC, CE LVD
Product dimensions: 203 × 203 × 132 mm (L × W × H)
Net weight: 1.4 kg; Gross weight: 1.9 kg

Technical specifications

• Model: VCS-SPOE20
• Type: IP in-ceiling speaker
• Rated Power: 20 W
• Max SPL: 80 dB; SNR: 75 dB
• Frequency response: 100 Hz–18 kHz
• Coverage: H 70° / V 100°
• Audio protocols: MP3, G.711a/u
• Storage: 512 MB (expandable) + TF card
• Network: 1 × RJ45; TCP/UDP/ARP/ICMP/IGMP/DHCP/HTTP/SIP/ONVIF
• Power: 24 VDC, 1 A (24 W) or PoE (IEEE 802.3at, Class 4)
• Power consumption: 20 W
• Operating temp: –40 °C to +60 °C
• Operating humidity: 60%–95% RH
• Ingress protection: IP6X
• Material: Aviation aluminum; Color: White
• Certifications: CE EMC, CE LVD
• Dimensions: 203 × 203 × 132 mm
• Packaging dimensions: 235 × 235 × 170 mm
• Net weight: 1.4 kg; Gross weight: 1.9 kg
