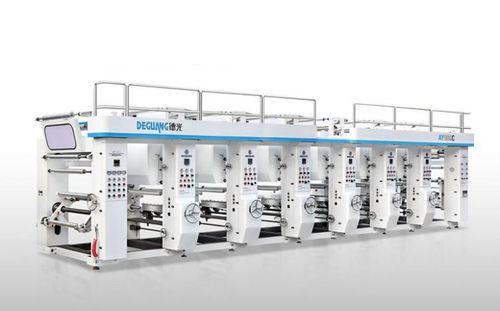

Rotogravure printing machine AY series

for aluminum foil4-color5-color

Feature: 1. Unwind double station turret with air shaft, magnetic powder brake control.Before one roll is finished printing, prepare another roll on the shaft, so you do not need to stop the machine to change the roll 2. Rewind double station turret with air shaft, two torque motor control. Before one roll is finished printing, prepare another roll on the shaft, so you do not need to stop the machine to change the roll 3. Unwind auto tension control, when the unwind roll diameter is becoming smaller, you do not need to adjust the tension manually, so it can save time for tension adjustment also it is better for tension control. 4. Pneumatic heavy type doctor blade has a longer life and it can remove extra ink completely from the printing cylinder to make the printing more clear and shinning 5. Shaftless pneumatic printing cylinder installation which can save much time 6. Main motor inverter control to make the machine run smoothly and controlling precisely. 7. Independent drying and suction exhausting system, air circulated, max recycled rate 50%, waste air eliminating tunnel 8. Heating pipe installed in the oven to heat the machine. 9. Reverse printing is available.
