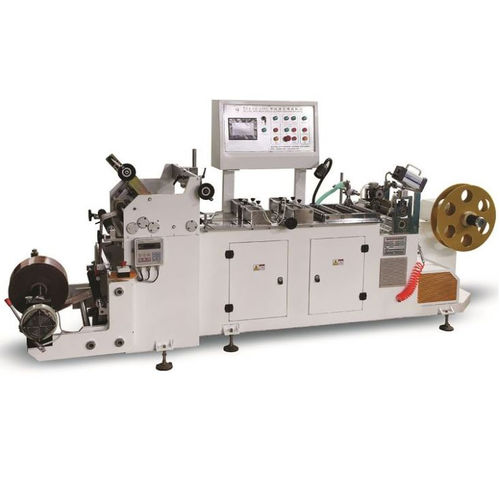

Bottle labelling machine TCJ-HZ-300C

PLC-controlledcanfor the food and beverage industry

Materials - PVC,PET Film thickness - 20-80 um Width of unwinding - 60-600mm Max.Unwinding diameter - Φ450mm Rewinding width - 15mm-260mm Max.Rewinding diameter - Φ700mm Max speed of Machine - 300m/min Power - 3 Phase 380V/50HZ Supply Power - 5KW Dimension - 3230*1310*1550mm Weight of whole Machine - 1000Kg This machine is mainly for making label on drinking bottle. Features: 1. Unwind powder brake 2. Air shaft 3. Whole machine PLC control with touch screen 4. Unwind EPC 5. Air extrude device which can makes small holes on the film,when the film shrink,the air will go out through the holes. 6. Pump gluing system, it is controlled by PLC,it will keep same speed with machine. 7. Stroboscope device which can inspect the gluing condition 8. Main motor inverter control 9. Meter counter and static eliminating cord
