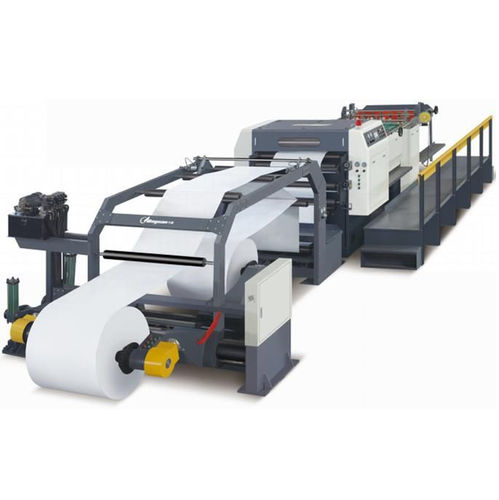

Knife cutting machine GM series

for paperrollerhigh-speed

Cutting type - Upper knife cut reciprocally and down knife fixed Paper thickness - 60-550GSM Max roll diameter - 1500mm(GM1100) 1800mm(GM1400/1700/1900) Max roll width - 1100/1400/1700/1900mm Cutting length - 450-1450mm(GM1100) 450-1600mm(GM1400/1700/1900) Cutting format - 2 sheet Cutting precision - Cutting length≤1000mm:±0.5mm cutting length＞1000mm:±0.1% Max cutting speed - 350 cut/min Max cutting meter speed - 350m/min Max paper pilling height - 1300mm(GM1100) 1500mm(GM1400/1700/1900)) Air request - 0.8Mpa Unwind pneumatic brake, comparing with magnetic powder brake, it has longer life and more controlling precision. 2. Shaftless hydraulic loading which can lift heavy roll. 3. Equipped with anti-curve device to prevent paper from getting curve during cutting. 4. Equipped with paper pre-pressing device to make the pressing roll moving vertically, ensure proper positioning of feeding paper, and reduce the phenomenon of paper creping 5. Equipped with upper,lower and back cutting knife, the cutting part is covered in safety cover, when the safely cover is open, machine will stop automatically. 6. Equipped with automatic adjustment system of paper edges and corners 7. Man-machine interface operation which is convenient, you can input cutting length and quantity 8. Equipped with static electric elimination device 9. Equipped with paper conveying device to increase the stability of paper and avoid inclination of paper 10. Equipped with automatic paper alignment and collection equipment 11. Equipped with automatic counting label insert equipment to realize sheet replenish function of non-conforming products. 12. The whole driving system is servo motor control, high precision.
