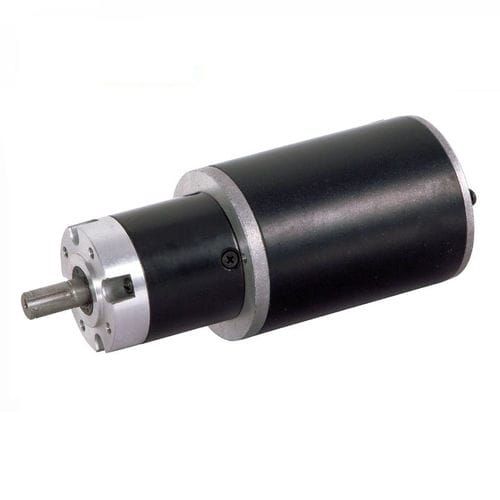

Planetary gear-motor 56JX300K/80ZY115

DCcoaxial100 W...500 W

Characteristics Motor type : Brush commutated DC motor Gearbox type : Planetary Diameter : Gearbox: 56mm; DC motor: 80mm Nominal voltage : 12V/24V DC or customized Gear ratio : 1:3.6 ~1:76 No load current : 0.80A; 1.10A Nominal current : 7.50A; 9.50A No load speed : 3000rpm; 3500rpm Nominal speed : 2400rpm; 2900rpm Permissible load range : 2.0N.m ~ 30.0N.m for S1 duty cycle Nominal power : 120W; 150W IP rating : up to IP68 Description High torque DC planetary gear motor The 80ZY115 model of brushed DC motor is equipped with a 56mm planetary gearbox Options Magnetic encoder or optical encoder with up to 3 channels provides feedback for your accurate control of motor speed and positioning. Power-on or power-off type electromagnetic brake Capacitor& resistor for EMC suppression Special shaft material and dimensions Custom design; OEM products available Features Ball bearing at output shaft Magnetic field generated by permanent magnets Operation in both directions of rotation(CW & CCW) Speeds ranging up to 10,000 RPM Various gear ratios enable either speed reduction or to increase the torque capability Advantageous torque with minimum space requirements Suitable for continuous, reversing and intermittent operation Can be installed in any mounting position Typical applications Industrial automation: conveyers, rotational operation, automatic gate system, solar tracker etc. Household electrical appliances:lawn mower, ice crusher, stair lift, air-condition, masticating juicer, food waste disposer, kitchen appliances, etc., The automotive industry: truck tarp systems, pumps, electric chair, jack, etc.
