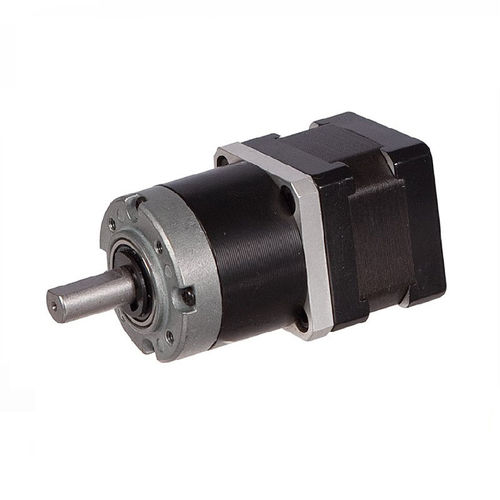

Planetary gear-motor 36JXES60K/35STH

steppercoaxial1 - 5 Nm

Characteristics Motor type : Nema14 Hybrid Square Stepper Motor Gearbox type : Planetary Phase : 2 Step Angle : 1.8º Step Angle Accuracy : ±5% (full step, no load) Gear ratio : 1:3.71 ~1:139 Permissible load range : 1.8N.m ~ 6N.m for S1 duty cycle Temperature Rise : 80℃ Max. (rated current, 2 phase on) Ambient Temperature : -20℃ ~+50℃ Insulation Resistance : 100MΩ Min., 500V DC Dielectric Strength : 500V AC for one minute IP rating : up to IP68 Description Planetary Gear Stepping Motor 1.8º 35mm size high torque hybrid square stepper motor is equipped with a 36mm ball bearing planetary gearbox Options Special shaft material and dimensions Custom design; OEM products available Magnetic/optical encoder with up to 3 channels provides feedback for your accurate control of motor speed and positioning. Features Small inertia, high precision, high stability, smooth running, low noise Advantageous torque with minimum space requirements Suitable for continuous and intermittent operation Can be installed in any mounting position Typical applications Printing system Bank equipment: ATM Metro fare collection system Water treatment industry: screw pump Scientific instrument industry: optical instrument Medical industry: hematology analyzer, biochemical analyzer, blood cell analyzer, Scanning equipment,etc. Textile industry: flat knitting machine, circular knitting machine, bobbin winder Advertising industry: laser machine, engraving machine, marking machine, inkjet Communication equipment industry: mobile satellite TV Industrial automation industry: semiconductor testing equipment, winding machine, stripping machine
