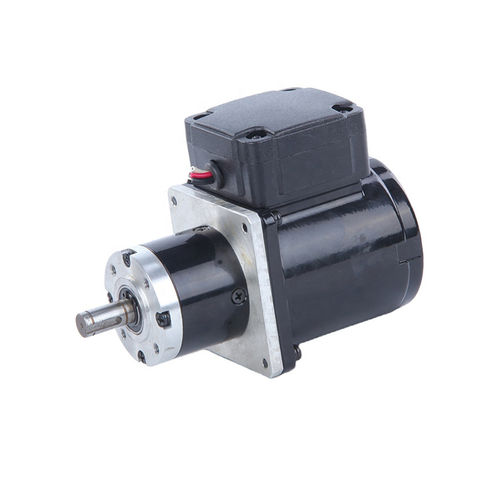

Planetary gear-motor 90YS90-2/72JX7G14three-phasecoaxial50 W...100 W
Add to favorites
Compare this product
Characteristics
- Motor type
- three-phase
- Type
- planetary
- Shaft orientation
- coaxial
- Power
- 50 W...100 W
- Voltage
- 220 V
- Torque
- 1 - 5 Nm
- Product applications
- industrial
- Gear ratio
7 unit
Description
AC Planetary Gear Motor 90YS90-2/72JX7G14 Specs. & Feature
· 90mm OD AC Motor
· 72mm OD Planetary Gearhead
· Voltage 230V 3-Phase
· Frequency 50/60Hz
· Motor Output Power 90W
· Rated Current 0.8A
· Rated Speed 186RPM
· Rated Torque 4.3N.m
· Gear Ratio 7/1
