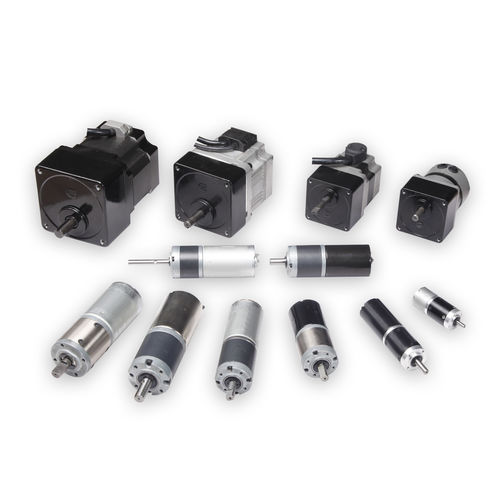

BLDC gear-motor JX_ZWN; JX_ZWNP; JB_ZWNplanetaryspurcoaxial
Add to favorites
Compare this product
Characteristics
- Motor type
- BLDC
- Type
- planetary, spur
- Shaft orientation
- coaxial, parallel-shaft
- Shaft configuration
- solid-shaft
- Power
- 100 W...500 W, 10 W...50 W, 50 W...100 W, 0 W...10 W, 500 W...1000 W
- Voltage
- 110 V, 6 V, 3 V, 9 V, 24 V, 12 V, 48 V, 36 V
- Torque
- 1 - 5 Nm, 5 - 10 Nm, 10 - 20 Nm, 20 - 50 Nm, 0.5 - 1 Nm, 50 - 100 Nm, 0.1 - 0.2 Nm, 0 - 0.1 Nm, 100 - 200 Nm
- Mounting
- foot-mounted, flange-mounted, shaft-mounted
- Performance
- high-torque, high-power, high-efficiency, high-performance, low-noise, precision, high load capacity, low-noise level
- Product applications
- for medical equipment, industrial, for automation, for industrial applications, for heavy-duty applications, for the chemical industry, for pharmaceutical applications, for mixers, for vehicles, for the food industry, for pump, for lifting applications, for conveyor, for machines, for solar tracker, for tracks, for the packaging industry, cleaning machine, for hygienic applications
- Certifications
- CE, ISO 9001, ISO 14001
- Other characteristics
- compact, IP65, custom-made, IP54, with encoder, maintenance-free, micro, precision, IP55, IP68
- Operating temperature
Min.: -40 °C
(-40 °F)Max.: 120 °C
(248 °F)
Description
DYD DC Brushless and Brushed Planetary Gear Motor Series
BLDC gear motors; BL DC gear motors; DC brushed motors; DC gearmotors; planetary geared DC motor/DC geared motor/DC motor with planetary gearbox/brushless DC gear motor/ BLDC geared motor/BL DC gearmotor
Planetary Gearbox outer diameter: 16 ~ 120mm
Matching Motor Type:
1) Brushed/Brushless DC Planetary Gear Motor
Brushed DC Motor Frame Types (OD): 16ZY, 22ZY, 24ZY, 28ZY, 31ZY,35ZY, 36ZY, 38ZY, 40ZY, 42ZY, 45ZY, 50ZY, 52ZY, 55ZY, 60ZY, 63ZY, 71ZY, 76ZY, 80ZY, 84ZY, 90ZY, 96ZY, 104ZY, 110ZYT, 118ZY, 130ZYT, 160ZYT, 170ZY
Brushless DC Motor Frame Types (OD): 22ZWN, 28ZWN,28ZWNP, 33ZWN, 36ZWNP, 36ZWN, 42ZWNP, 42ZWN, 42BL, 57ZWN,86ZWN
Gear Motor General Performance:
Voltage: 12VDC ~ 400VDC
Motor Rated Speed: 600 ~ 17000rpm
Gear Motor Rated Speed: 1 ~ 999rpm
Motor Output power: 1W ~ 4500W
Gear Motor Rated Torque: up to 1000N.m
Gear Ratio Range: 1:3 ~ 1:3000
Optional Components: Magnetic / Optical Encoder; Power-on / Power-off Brake; Connector; External/Built-in Driver Available
Customized IP Class: IP00, IP40, IP44, IP54, IP55, IP65, IP67 or IP68
Customized Technical Specs. & Dimensions Available
2) Hybrid Planetary Gear Stepper Motor
Stepper Motor Frame Types (OD): 20STH, 28STH, 35STH, 42STH, 57STH, 60STH, 86STH
General Performance:
Voltage: 2.7VDC ~ 12VDC
StepAngle: 0.9°, 1.8°
Gearbox Torque: 0.6N.m ~ 500N.m
Ratio: 1:3.71~1:515
Ambient Temperature: -20℃ ~+50℃
Available Customized IP Class: IP00, IP40, IP44, IP54, IP55, IP65, IP67 or IP68
Optional Components: Magnetic/Optical Encoder; Power-on/ Power-off Brake; Connector;
Customized shaft & Flange Cover Available
