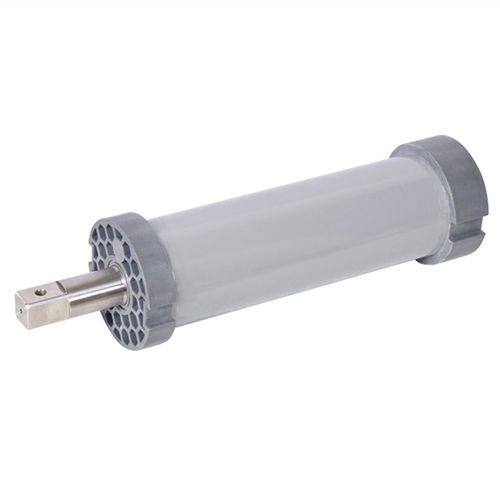

DC gear-motor 80ZY125X65-2436CD/JXT1099-BF145brushedpermanent magnetplanetary
Add to favorites
Compare this product
Characteristics
- Motor type
- DC, brushed, permanent magnet
- Type
- planetary, magnetic
- Shaft orientation
- coaxial
- Shaft configuration
- solid-shaft
- Power
- 50 W...100 W
- Voltage
- 24 V
- Torque
- 200 - 500 Nm, 500 - 1000 Nm
- Performance
- high-efficiency, low-noise, high-power, high-performance, high-torque, low-noise level
- Product applications
- for automation, for industrial applications, with encoder
- Certifications
- CE, OHSAS 18001, ISO 9001, ISO 14001
- Other characteristics
- compact, custom-made, submersible, with encoder, IP68, low-voltage, low-speed, with brake
- Gear ratio
1,099 unit
- Operating temperature
Min.: -40 °C
(-40 °F)Max.: 120 °C
(248 °F)
Description
IP68 600N.m Pool Cover Gear Motor Typical Specs.:
Model: 80ZY125X65-2436CD/JXT1099-BF145
Voltage 24V DC
Rated Load Current 15.5A
No-Load Speed 3.3rpm
Rated Speed 2.5rpm
Rated Torque 450N.m for Continuous Running
(Rated Torque 600N.m for Intermittent Running )
Gear Ratio 1099/1
Stainless Steel Shaft SS316
With Inductive Sensor PNP & a 1.5N.m Brake
IP68
