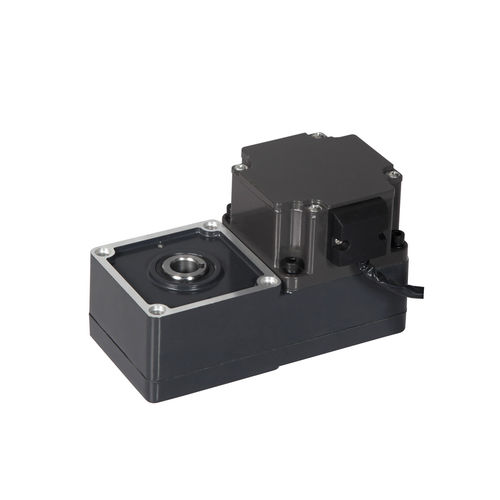

Parallel-shaft gear-motor 80ZWN47-2428/80CJB136.1K15 DCbrushlessbrushed
Add to favorites
Compare this product
Characteristics
- Motor type
- DC, brushless, brushed
- Type
- spur
- Shaft orientation
- parallel-shaft
- Shaft configuration
- hollow-shaft
- Power
- 10 W...50 W
- Voltage
- 24 V
- Torque
- 10 - 20 Nm
- Performance
- high-torque, low-noise, high-efficiency, high-power, high-performance, precision, low-backlash
- Product applications
- for automation, for industrial applications, for conveyors
- Certifications
- CE, OHSAS 18001, ISO
- Other characteristics
- low-noise, high-torque, with encoder
- Gear ratio
136.1 unit
- Operating temperature
Max.: 80 °C
(176 °F)Min.: -40 °C
(-40 °F)
Description
Brushless and Brushed DC Parallel Shaft Gear Motor
Brushless DC Spur Gear Motor / BL DC Gear Motor
Model: 80ZWN47-2428/80CJB136.1K15 with inner hall sensor
Technical pecs.:
Only motor:
Voltage: 24V DC
No-load speed 2800rpm
No-load current 0,6A
Rated speed 2200rpm
Rated power 45W
Rated torque 0.194N.m
Gear motor:
Gear ratio 1:136.1
Rated torque 19.2N.m
Rated speed 16.2rpm
Back lash 0.5°
Max. radial load 1500N
Max. axial load 500N
Noise @ no-load: 0.5m distance with 60dB.
Optional components: speed controllers/encoder/brake/ cable connector
CE, UKCA, Reach and RoHS approval
Customized shaft & flange dimensions and technical specs. are available upon requested.
