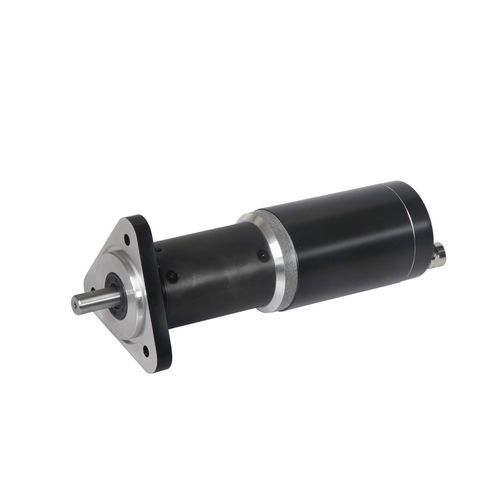

Solar tracker gear-motor 63ZY105-2420/52JXM176GDCpermanent magnetbrushless
Add to favorites
Compare this product
Characteristics
- Motor type
- DC, permanent magnet, brushless
- Type
- planetary
- Shaft orientation
- coaxial
- Shaft configuration
- solid-shaft
- Power
- 10 W...50 W
- Voltage
- 24 V
- Torque
- 20 - 50 Nm
- Performance
- high-torque, high-power, high-performance, high-speed, high-precision, low-backlash
- Product applications
- industrial, for automation, for solar tracker
- Certifications
- CE, OHSAS 18001, ISO
- Other characteristics
- low-noise, high-torque, two-stage, three-stage, with encoder
- Gear ratio
176 unit
- Operating temperature
Max.: 70 °C
(158 °F)Min.: -40 °C
(-40 °F)
Description
Low Speed IP66 DC Planetary Gear Motor for Solar Tracking System
General technical specs.:
Voltage: 24V DC or customized
Optional IP Rating: IP54, IP55, IP65, IP66 or customer's needs
Rated torque up to 35N.m for continuous running
Max. torque up to 150N.m
Certificates: ISO9001, CCC, CE, EAC, UKCA, RoHS; Reach
Customized shaft & flange dimensions and technical specifications are available upon requested.
One Typical Model:63ZY105-2420/52JXM176G12J30
Gear Motor:
Voltage: 24V DC
Gear Ratio: 176:1
Rated Speed: 9rpm
Rated Torque: 25N.m
Rated Current: within 2.5A
IP Rating: IP66
Operation Temp.: -40℃ ~ 70℃
