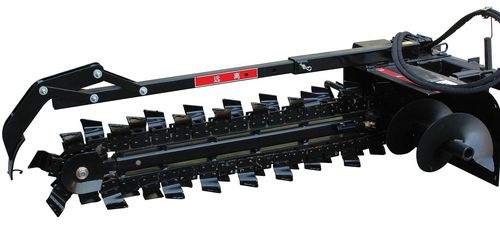

Chain trencher
for skid steer loaders

chain trencher
chain trencher
chain trencher
chain trencher
chain trencher
Add to favorites
Compare this product


Characteristics

Type
chain
Configuration
for skid steer loaders

Description

Description: To dig trenches, typically for laying pipes and cables, and for drainage. Max. digging depth is 1475mm. Model HT50A-870000 Digging Depth (A) 1475 mm Tooth Width (B) 142 mm Suggested Digging Angle (C) 65° Driving Shaft Height (D) 200 mm Total Length (E) 2577 mm Total Width (F) 1380 mm Trencher Height (G) 700 mm Unload Reach (H) 574 mm Tooth Adjusting Distance (S) 435 mm Drive Sprocket to Rear Rack (L) 451 mm Working Pressure 180 bar Total Weight 509 Kg Compatible With HT50A, HT60A, HT65A, HT65W, HT65L, HT75A
