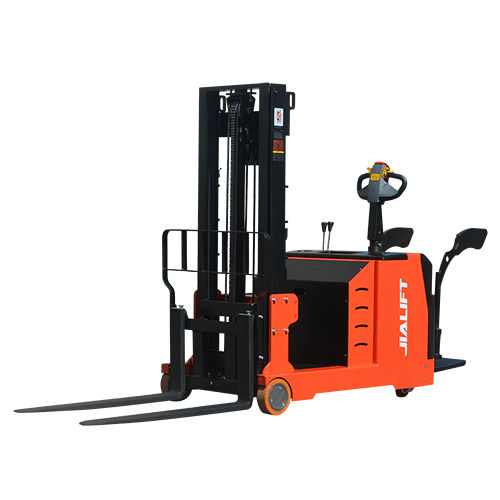

Counterbalanced stacker truck E12 series

electricstand-on24 V

■ The main mast is made by 12# U-steel, with the leg thickness of 21.3 mm, which creates the powerful ride-on reach truck. The high strength of the truck body ensures the stability when operating. ■ The free lifting is set between the top of oil cylinder piston rod and the top rail of inner mast. When the lifting height of the forks is very low, the inner mast will not lift. This design is very practical when the forklift goes through some gates. ■ One-piece forks have the function of tilting forward and backward. The hook type design makes it convenient to adjust the width from both left and right sides. All these actions enable the operator' s accurate stacking. ■ Setting aside considerable space in the battery box, allows some users to increase the battery capacity according to their heavy loads, to extend the working time. ■ The high-strength acrylic shield on the mast is with good transparency, strong shock resistance, and excellent protective effect. ■ The protection arms on both sides of the driving position protect the operator’ s safety. ■ The shock absorber under the pedal can absorb the shock generated when the truck is moving, to alleviate the impact of the road. ■ Emergency reverse switch on the handle. When the truck is backing and out of control and the operator' s belly will hit this switch actively or passively, the truck will stop and quickly reverse movement for a short distance, to prevent the operator’ s body from crush injury. ■ Lifting limitation function. When the forks are raised to the maximum height, the system will automatically cut off the power supply for lifting, and smoothly stop. This action can prevent the danger.
