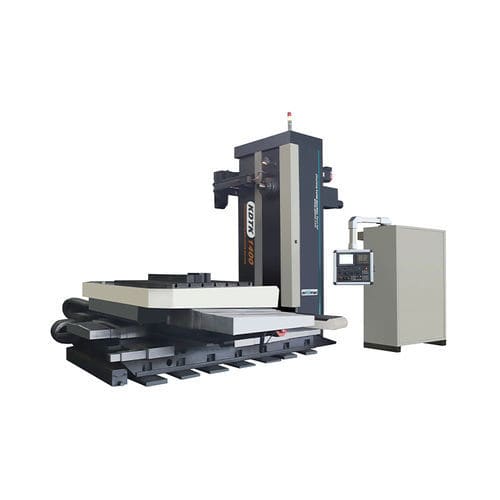

CNC boring milling machine KDTK1250/1400

vertical4-axisprecision

With X, Y, Z, W four-axis control, can be controlled by three axes at the same time. The spindle box adopts spray lubrication and cooling to ensure the thermal stability of the spindle system.The main shaft drive system is equipped with ZF two-speed reducer to effectively improve the strong cutting performance. Worktable mining program control, adapt to various processing needs. Item - UNIT - KDTK1250 - KDTK1400 Table size - mm - 1250×1250 - 1400×1600 Max. rotary cutting torque of table - Kgf.m - 650 - 625 Max. loading weight - t - 5 - 10 Table T-slot(number×width×space) - mm - 9×22×130 - 7×22×200 Processing range - Distance from spindle center to table - mm - 0～1800 - Distance from spindle end to table center - mm - 85～2385 Spindle - - - Taper bore of spindle - - BT50 - Range of spindle speeds - rpm - 5～3000 Max. output torque of spindle - Nm - 1280 - Feed - - - X/Z motor torque (power) - Nm（kW） - 38（6） - Y motor torque (power) - Nm（kW） - 53（9） - W motor torque (power) - Nm（kW） - 22（4） - B motor torque (power) - Nm（kW） - 30（7） - X/Y/Z cutting feed speed - mm/min - 10～5000 - X/Y/Z travel speed - m/min - 12/10/10 Accuracy - - - Repeat positioning accuracy(X/Y/Z) - mm - 0.01 - positioning accuracy(X/Y/Z ) - mm - 0.025 - Min. input unit (X/Y/Z) - mm - 0.001 - B axis repeat positioning accuracy - Sec. - 4 - B axis positioning accuracy - Sec. - 10 - Min. input unit (B axis) - degree - 1 - 0.001 Tool - - - Tool capacity - - 60 - Tool changing time (APC) - Sec. - 13 - Others - - - Controller - - FANUC 0i MF（1） - Net weight - t - 22 - Overall dimensions(LxW×H) - mm - 6500x6100x3830 (with chip conveyer)
