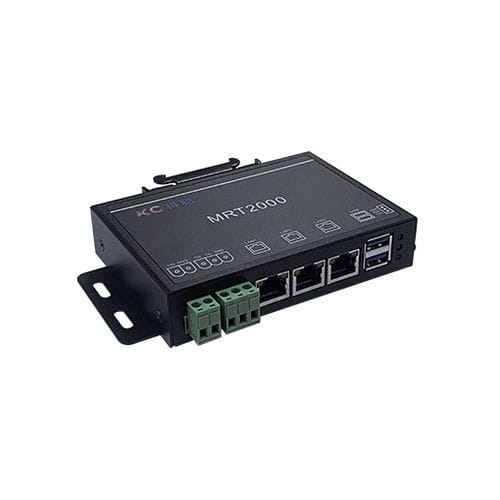

Position sensor module MRT2000

temperature

MRT2000 is an intelligent module specialized in cargo pallet recognition and visual obstacle avoidance. The module adopts a high-performance, highly reliable computer for image recognition, and outputs pallet absolute position information and deflection angle information data. Recognition processing using KC algorithms, the module meets the recognition accuracy of ± 1 cm, the angle of error of ± 1 ° (the comprehensive recognition rate of the data processing results). Dimensions W x H x D(mm) 160 x115 x 40(exclude plug contact) Power supply 24 VDC Operation current <1A @24 VDC Detection angle accuracy - ±1° Detection position accuracy - ±1 cm Communication mode Ethernet Temperature,operation ≥－25 ℃，≤＋70 ℃ Temperature,storage ≥－40 ℃，≤＋85 ℃ EMC - Industrial grade II Humidity,operation 10%RH~90%RH no-condensing Humidity,storage 5%RH~95%RH no-condensing Atmosphere pressure, operation ≥62 kPa，≤106 kPa Corrosion - Line with company's standards Mounting methods M4x4(Mounted flat) Supported camera Pallet recognition:IFMO3D303,IFMO3X100 ,etc Vision Obstacle avoidance: Angstrong,INUChip,etc Pallet type ISO, CEN, User-defined pallet
