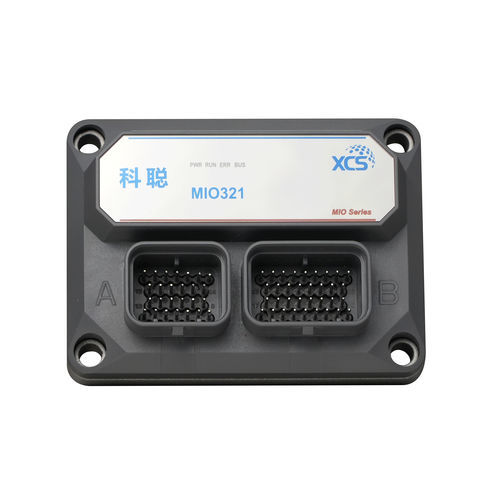

Digital I/O module MIO3 series

CANopen8-channel32-I/O

MI03XX IS AN I/O EXPANSION MODULE, CAN INTERFACE, USING CANOPEN COMMUNICATION, SUPPORTING 8 RELAY OUTPUTS AND 8 SWITCHING INPUTS. This product can easily and reliably collect the switching quantity and control the relay. Dimensions WxHxD (mm) 146 x 120 x 42 100.5×74×33 Power Supply - (18~60) VDC Operating Current 140mA - <200mA@24V Communication Method CAN Operating Temperature - ≥－25℃，≤＋70℃ Storage Temperature ≥－40℃，≤＋85℃ Normal Operating Humidity (%) - 10%RH-90%RH No Condensation Storage Humidity (%) - 5%RH-95%RH No Condensation Operating Air Pressure ≥62 kPa，≤106kPa Installation Method M5 Screw Mounting Signal Type Digital Input Signal Channel Count 8 32 (Configurable with DO) Signal Type Source Contact Input, Dry Contact Input NPN Input, Dry Contact Input Source Contact Input, Dry Contact Input - NPN Input, Dry Contact Input Signal Type Digital Transistor Output Signal Channel Count 8 32 (Configurable with DO) Signal Type Source Output
