Rod alloy steel GH2132

plate

Product overview

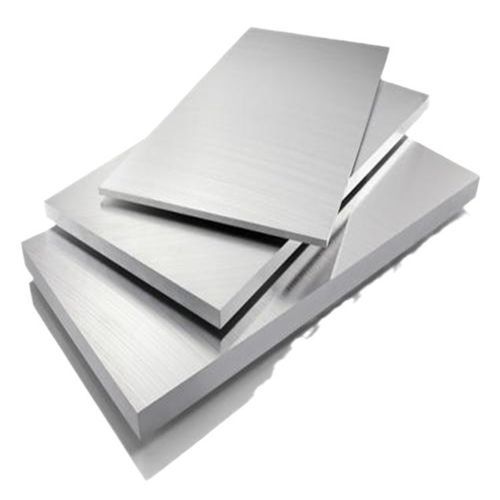

Iron-based superalloy plate GH2132 (UNS S66286) manufactured by Shuaiyi in Zhejiang, China. Typical composition: Ni 24–27%, Cr 13.5–16%. Available as plates and in round/square/flat/forged bars; dimensions and heat treatments customizable.

Key specifications

• Grade: GH2132 (UNS S66286)
• Material type: Iron-based superalloy
• Standard: GB/T 14992-2025
• Typical dimensions: diameter/width/thickness per requirement
• MOQ: 200 kg (flexible)
• Packaging: standard seaworthy export package

Chemical composition (%)

• Fe: balance
• Ni: 24–27
• Cr: 13.5–16
• Mo: 1–1.5
• Ti: 1.75–2.35
• Mn: 1–2
• Si: ≤ 1
• V: 0.1–0.5
• Al: ≤ 0.4
• C: ≤ 0.08
• B: 0.001–0.01
• P: ≤ 0.02
• S: ≤ 0.015
• Cu: ≤ 0.25

Mechanical properties

• Yield strength: ≥ 590 MPa
• Elongation: ≥ 15%

Available forms & processing

• Forms: plates, round bar, square bar, flat bar, forged bar
• Processing services: cutting, forging, bending, welding, machining, heat treatment

Quality, supply & logistics

• Certifications: ISO9001, CE, SGS
• Production capacity: 50,000 tons/month
• Payment terms: T/T, L/C
• Sample: available
• Lead time: quick delivery; OEM/ODM available

Applications

• Aerospace engines
• Compressor and turbine discs
• Shafts, fasteners and load-bearing components
• High-temperature equipment
