band saw / miter / cut-off / for plastics
WEIYE GZS4240B

{{requestButtons}}

Characteristics

  • Technology:

    band, cut-off, miter

  • Treated material:

    for steel, for plastics

  • Applications:

    for profiles, for pipes

  • Other characteristics:

    automatic, horizontal, double-column, with cooling system, with roller conveyor, gantry type, PLC-controlled, inverter, with electric motor adjustment

  • Circular saw blade diameter:

    Min.: 54 mm

    Max.: 54 mm

  • Round piece diameter:

    400 mm

    Min.: 100 mm

    Max.: 400 mm

Description

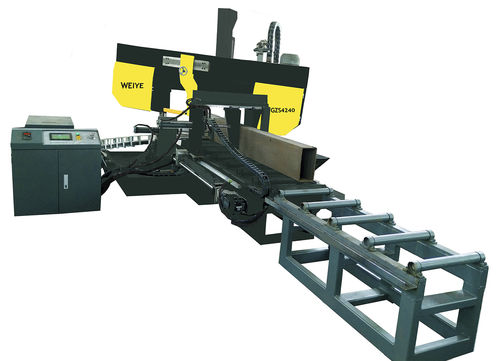

WEIYE DESIGNED Structural steel saw Horizontal automatic miter band saw machine GZS4240B

Specifications
Item unit
Type GZS 4240B
Capacity mm 90° ▄400×500 +45° ▄350×350
inch 90° ▄15×19 +45° ▄13×13
Blade Speed mpm 20~70
fpm 65~230
Blade Size mm 54×1.6
inch 1-5/8 x 0.05
Blade Motor KW 5.5
HP 7-3/8

Features
Special for structural steel, angle steel, beam cutting with different angle
Adopts gantry type with dual square columns
Front infeed, rear outfeed
Inverter for blade speed variant
Hydraulic feed rate control
Max. cutting angle up to +45 degrees
Servo drive to the saw frame swiveling control with high precision
Servo drive to the beam feeding unit with hydraulic fixture
Hydraulic fixture for the beam to be cut
Hydraulic band tension unit
Separate placement of hydraulic power unit and electric cabinet
Idle roller table support the beam feeding
