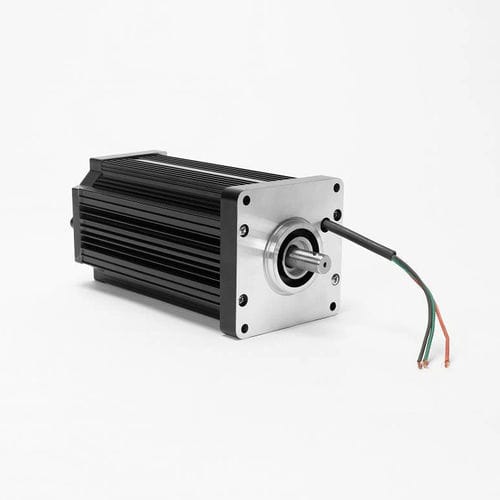

AC motor 96*90
380 V220 Vlarge

AC motor - 96*90 - Zhejiang Xinli Electric Technology Co., Ltd. - 380 V / 220 V / large
AC motor - 96*90 - Zhejiang Xinli Electric Technology Co., Ltd. - 380 V / 220 V / large
AC motor - 96*90 - Zhejiang Xinli Electric Technology Co., Ltd. - 380 V / 220 V / large - image - 2
AC motor - 96*90 - Zhejiang Xinli Electric Technology Co., Ltd. - 380 V / 220 V / large - image - 3
AC motor - 96*90 - Zhejiang Xinli Electric Technology Co., Ltd. - 380 V / 220 V / large - image - 4
AC motor - 96*90 - Zhejiang Xinli Electric Technology Co., Ltd. - 380 V / 220 V / large - image - 5
AC motor - 96*90 - Zhejiang Xinli Electric Technology Co., Ltd. - 380 V / 220 V / large - image - 6
Add to favorites
Compare this product

Characteristics

Type
AC
Voltage
380 V, 220 V
Configuration
large
Number of poles
4-pole
Applications
for industrial applications, for automatic doors
Power

Min.: 50 W
(0.07 hp)

Max.: 1,200 W
(1.63 hp)

Intensity

0.8 A, 1 A, 1.7 A

Torque

4.5 Nm, 7.5 Nm
(3.31903 ft.lb, 5.531716 ft.lb)

Rotational speed

1,410 rpm, 1,450 rpm
(8,859.2913 rad.min-1, 9,110.6187 rad.min-1)

Description

Electric gate motor, also known as electric gate opener, is a device designed to automate the process of opening and closing gates. It is an essential component of any automated gate system, providing reliable and efficient performance while improving security and convenience. Electric gate motors are electromechanical devices that convert electrical energy into rotational motion. They are commonly used in automated gate systems to provide the necessary force to open and close gates. Depending on the type of gate, electric gate motors come in various sizes and configurations. Some common types include sliding gate motors, swing gate motors, and barrier gate motors. Electric gate motors offer a range of advantages compared to other gate opener solutions, such as manual operation or hydraulic systems. These advantages include: Convenience: With an electric gate motor, gates can be opened and closed automatically, eliminating the need for manual operation. This is especially useful for properties with heavy or large gates. Security: Electric gate motors provide a higher level of security compared to manual gates. They feature locking systems that prevent unauthorized access and can be integrated with access control systems for added security. Durability: Electric gate motors are designed to withstand harsh weather conditions, ensuring long-lasting performance and durability. Energy efficiency: Electric gate motors are highly energy-efficient, consuming minimal power while delivering maximum performance.
