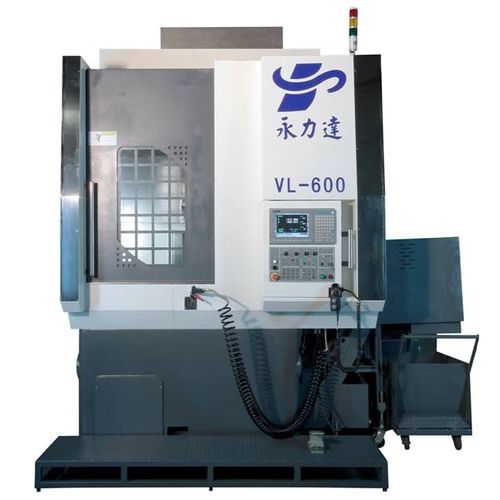

CNC lathe VL seriesvertical2-axis
Add to favorites
Compare this product
Characteristics
- Control type
- CNC
- Spindle orientation
- vertical
- Number of axes
- 2-axis
- Diameter
550 mm, 750 mm
(21.65 in, 29.53 in)- Spindle speed
Max.: 1,500 rpm
(9,424.778 rad.min-1)Min.: 50 rpm
(314.159 rad.min-1)- Axe X
500 mm
(20 in)- Axe Z
700 mm, 900 mm
(28 in, 35 in)- Rapids on X
20,000 mm/min
(13 in/s)- Rapids on Z
10,000 mm/min
(7 in/s)- Nominal power
30 kW, 45 kW
(40.8 hp, 61.2 hp)- Coolant capacity
400 l
(106 gal)- Overall lenght
2,950 mm
(116 in)- Overall width
2,740 mm
(108 in)- Overall height
3,100 mm, 3,300 mm
(122 in, 130 in)- Weight
10,000 kg, 11,000 kg
(22,046 lb, 24,251 lb)
Description
Maximum rotation mm
600
800
The power source
Power output (380V) KVA
115 (155)
The main power switch A
345 (465)
