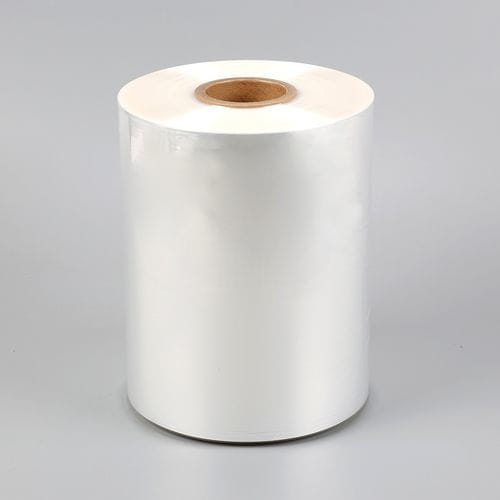

Packaging film ZDF04

for food packagingshrinkpolyolefin

Introduction
ZDF04 anti-fog cross-linked polyolefin shrink film is engineered for outer packaging of refrigerated products and industrial goods that require condensation control and high-clarity presentation. The film provides anti-fog performance, enhanced puncture resistance and excellent optical properties for retail display, transport and storage.

Thickness
Available gauges: 11 µm, 15 µm, 19 µm.

Features

• Anti-fog: Hydrophilic surface prevents droplet formation and preserves product visibility in cold or humid environments.
• Mechanical strength: Cross-linked structure delivers improved tear and puncture resistance during handling and distribution.
• High clarity: Low haze and high gloss ensure clear product presentation and reliable barcode/readability.
• Customizable: Width, length, thickness and color can be tailored to packaging specifications.
• Shrink performance: Uniform shrink on heat application for tight packs and protection against dust and contaminants.

Applications
Designed for refrigerated food (fruits, vegetables, prepared foods), pharmaceuticals, electronics, bundled or irregular-shaped items and any product requiring anti-fog protection and clear display.

Performance Parameters (selected)
TEST ITEM | UNIT | ASTM TEST METHOD | TYPICAL VALUES (11 µm / 15 µm / 19 µm)
Tensile Strength (MD) | N/mm² | D882 | 135 / 135 / 140
Tensile Strength (TD) | N/mm² | D882 | 135 / 130 / 135
Elongation (MD) | % | D882 | 130 / 130 / 135
Elongation (TD) | % | D882 | 120 / 120 / 125
Tear MD at 400 g | gf | D1922 | 7.5 / 11.0 / 14.5
Tear TD at 400 g | gf | D1922 | 8.5 / 11.5 / 15.5
MD HotWire Seal | N/mm | F88 | 0.90 / 1.05 / 1.25
TD HotWire Seal | N/mm | F88 | 0.95 / 1.15 / 1.35
Static COF (film to film) D1894 | - | - | 0.31 / 0.29 / 0.27
Dynamic COF D1894 | - | - | 0.30 / 0.29 / 0.28
Haze D1003 | - | D1003 | 3.9 / 4.8 / 5.4
Clarity D1746 | % | D1746 | 95.5 / 94.5 / 93.5
Gloss @45° D2457 | - | D2457 | 81.5 / 79.0 / 77.0
Anti-fog arrival time at 5°C | - | - | 2 hours
Anti-fog effect | - | - | Complete transparency, no visible droplets
Oxygen Transmission Rate | cc/m²/day | D3985 | 9900 / 8600 / 6200
Water Vapor Transmission Rate | gm/m²/day | F1249 | 30.7 / 27.3 / 19.5

Shrinkage Properties (free shrinkage % at temperature)
Free shrinkage MD / TD at: 100°C | 20 / 30; 110°C | 38 / 45; 120°C | 62 / 64; 130°C | 81 / 78

Shrink Tension (MPa) MD / TD at 100°C, 110°C, 120°C, 130°C
MD: 2.15 / 2.80 / 3.30 / 3.10
TD: 2.50 / 3.90 / 4.15 / 3.85

FAQ (selected)

• What is anti-fog film? — A film treated to prevent fogging by promoting uniform moisture spread, commonly used in food and medical packaging.
• Does anti-fog film work? — Yes; performance depends on film type, storage conditions and application.
• How is anti-fog film made? — Typically via hydrophilic additives or coatings on the film surface; cross-linking improves mechanical properties.
• What is cross-linked shrink film? — A shrink film processed by cross-linking to increase tensile strength and puncture resistance for demanding packaging applications.

Technical specifications

• Model: ZDF04
• Product type: Anti-fog cross-linked polyolefin shrink film
• Thickness: 11 µm, 15 µm, 19 µm
• Tensile strength (MD/TD): ~135 / ~130 N/mm² (varies by gauge)
• Elongation (MD/TD): MD ~130%, TD ~120%
• Tear strength (MD/TD at 400 g): MD 7.5–14.5 gf, TD 8.5–15.5 gf
• HotWire seal strength (MD/TD): MD 0.90–1.25 N/mm, TD 0.95–1.35 N/mm
• COF (static/dynamic): Static 0.31/0.29/0.27; Dynamic 0.30/0.29/0.28
• Optical: Haze 3.9–5.4; Clarity 95.5–93.5%; Gloss 81.5–77.0
• Anti-fog: Arrival time at 5°C = 2 hours; clear, no visible droplets
• Barrier: OTR 9900 / 8600 / 6200 cc/m²/day; WVTR 30.7 / 27.3 / 19.5 gm/m²/day
• Shrinkage: MD/TD increases with temperature (100–130°C)
• Shrink tension: MD 2.15–3.30 MPa; TD 2.50–4.15 MPa (varies by temperature and gauge)
