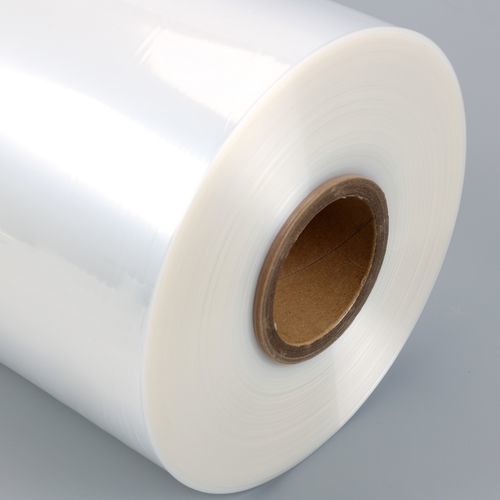

Packaging film

for packagingbarrierfor food packaging

Product overview
The lidding barrier shrink film provides a combination of high oxygen barrier, antifog performance and excellent transparency. It reduces gas transfer (oxygen, nitrogen and others) during refrigerated storage, helping to retain moisture and colour and extending shelf life. It is primarily designed for fresh meat and refrigerated food lidding applications.

Product features

• High oxygen barrier
• Outstanding antifog property
• Excellent transparency and gloss
• Attractive shelf display appearance

Typical thickness
25 μm

Product details (images / applications)

• Lidding application (3) - application image
• Lidding application (2) - application image
• Lidding application (1) - application image

Performance parameters

• Thickness: 25 μm
• Tensile strength (MD/TD): 100/100 MPa (D882)
• Elongation at break (MD/TD): 80/100 % (D882)
• Shrinkage at 100°C: 15 % (D2732)
• Oxygen Transmission Rate (OTR): 8 cm3/(m2·24h·0.1MPa)
• Water Vapor Transmission Rate (WVTR): 12 g/m2·24h
• Haze: 5 % (D1003)
• Clarity: 90 (D1746)
• Gloss (45°): 100 (D2547)
• Available width: 300–650 mm
• Single roll length: 1600 m

MD = Machine Direction TD = Transverse Direction

Note: This information represents our best judgment based on laboratory testing. The company assumes no liability for the use of the information or findings contained herein.

Technical specifications

• Thickness: 25 μm
• Tensile strength (MD/TD): 100/100 MPa (D882)
• Elongation at break (MD/TD): 80/100 % (D882)
• Shrinkage at 100°C: 15 % (D2732)
• OTR: 8 cm3/(m2·24h·0.1MPa)
• WVTR: 12 g/m2·24h
• Haze: 5 % (D1003)
• Clarity: 90 (D1746)
• Gloss (45°): 100 (D2547)
• Width: 300–650 mm
• Roll length: 1600 m
• Primary applications: fresh meat and refrigerated food lidding
