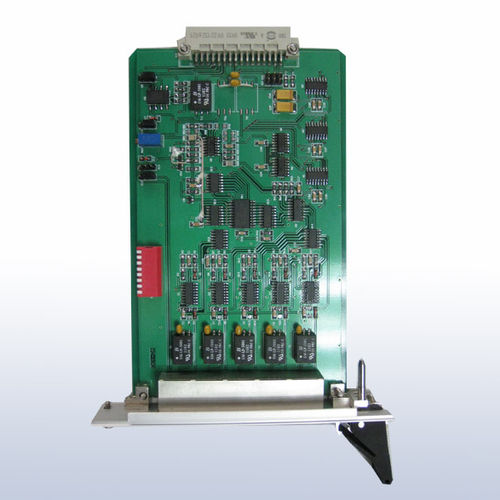

Signal distributor HK SC2000

signal distributor
signal distributor
signal distributor
signal distributor
Add to favorites
Compare this product




HK SC2000 Signal Distributor applies to the situation when multi-users share same one wireless channel to communicate. Each remote controller interfaced into the signal distributor can not only receive the message from the channel, but also can send the message out. Besides, it has no prioritization, i.e. the one who firstly starts PTT can use it firstly. Moreover, it can provide with as many as 55 channels for users. The interface of the distributor is E&M interface type V(like input equipment PCM ) ■ Technical Data Interfaces *Connectors of Link and user: RJ45 ,8 pins Interface Characteristics *Audio Connector impedance: 600 Ω,balanced *Frequency range: 300 Hz ~ 3 400 Hz *AF response: -0.5 dB ~ +0.5 dB *Audio gain in transmission: 6 dB(settable *Audio gain in reception: 6 dB(settable) *Audio distortion: ≤1% *PTT time-out: configurable between 0s and 100s,can be deactived Environmental data *Operating temperature: -20 ℃ ~ +55 ℃ *Storage temperature: -40 ℃ ~ +70 ℃ *Relative humidity: 95%, (+40 ℃±2 ℃) *Dimensions: 250 mm×483 mm×130 mm(D×W×H)
