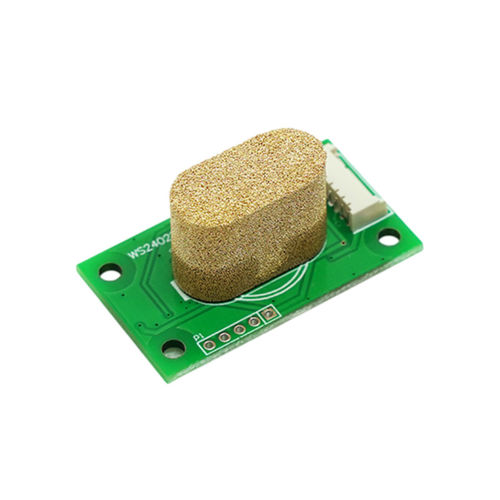

Hydrogen gas sensor module ZC601

catalyticfor automotive lithium batteryanalog

The ZC601-H2 catalytic module is a miniaturized and universal gas detection module. This module is equipped with Winsen's catalytic combustion sensor, which has the characteristics of short warm-up time and fast response. The circuit uses a Wheatstone bridge, a high-precision processor, and an intelligent algorithm to convert the detected gas concentration into a digital signal, which is then transmitted through a serial port, analog signal, etc. Application Hydrogen boiler leak detection, hydrogen refueling station gas leak detection, battery thermal runaway detection, portable hydrogen detector, etc. Features It has short preheating time, fast response speed, high test resistance and long service life. Output method - Analog signal/UART Working voltage - 5V±0.1V DC Working current - ≤170mA Pre-heating time - ≤1S Responding time - ≤2S Recovery time - ≤30S Accuracy error - ±1200ppm (±3%LEL) Resolution - 1ppm Working temperature - -40℃~95℃ Working humidity - 0-95%RH (No condensation) Storage temperature - -10℃~55℃ Storage humidity - 30% ~ 60%RH Life span - 5years (in the air)
