Plate filter

dischargehigh-temperaturehigh-capacity

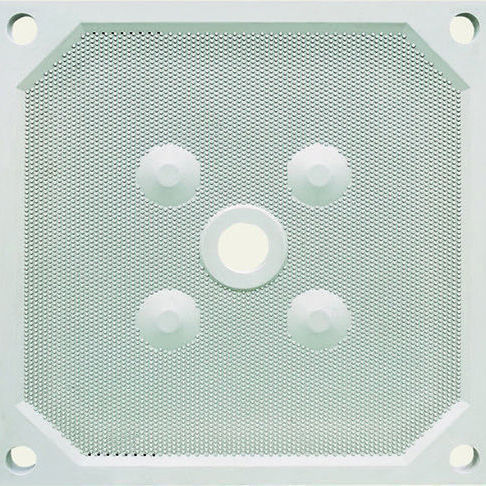

ADVANTAGES OF THE CHAMBER FILTER PLATE · The recessed area of the chamber filter plate is molded with conical pips. The surface of the pips provides support for the filter cloths and provides a drain path for the filtrate to exit to the filtrate discharge port. · The chamber filter plate can be supplied with customer requested feed eye arrangement. · The sealing surface of the chamber filter plates are machined parallel to seal when the plates are pressurized. · A long working life is achieved due to most modern production techniques as well as to an excellent chemical resistance of the used thermoplastic materials even under high temperature. · A quick drainage and an excellent washing of the cake result in a high product quality. The hydrophobic surface prevents resp. delays plugging of drainage channels. · The special design of chamber plates leads to shorter filtration cycles and an increase in capacity. · The smooth plastic surface reduces friction between filter cloth and plate surface. · Compared to filter plates made from metal there is almost no loss in energy even under high working temperature. · The inert hydrophobic surface of PP rejects dirt, absorbs less than 0,1% water and makes a quick product conversion possible. · The low weight makes handling easy and shortens filtration cycles.
