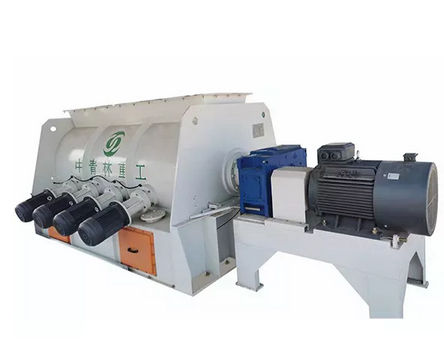

Plough mixer horizontalbatchcontinuous
Add to favorites
Compare this product
Characteristics
- Technology
- plough
- Configuration
- horizontal
- Batch/continuous
- batch, continuous
- Product type
- powder
- Applications
- for mortar
- Other characteristics
- single-shaft
- Engine power
Min.: 7.5 kW
(10.2 hp)Max.: 150 kW
(203.94 hp)- Capacity
Min.: 500 l
(132.09 gal)Max.: 10,000 l
(2,641.72 gal)- Empty weight
Min.: 800 kg
(1,763.7 lb)Max.: 8,000 kg
(17,637 lb)
Description
The single shaft compulsory mixer with several of plough blade are installed on the only main shaft, which avoid
the mixing dead zone in structure. When mortar in mixer tank move following the direction of the
continuous force generated by the continuously blending plough blade, thus to achieve scattering, dispersing and
fast mixing of material.
Special material like fiber ,high speed chopper can be installed inside mixer tank to scatter and dispense these
materials with combination of plough blade.
The high speed choppers are positioned at the tank side downward angle of 45 degrees of the plough shear mixer,
the chopper heads stretch into the mixer
Features:
1)High mixing precision
2)Good sealing, easy cleaning
3)Short batch mixing time
4) Small size ensures installation convenience
5) Materials: Carbon steel
6) Large amount of loading
