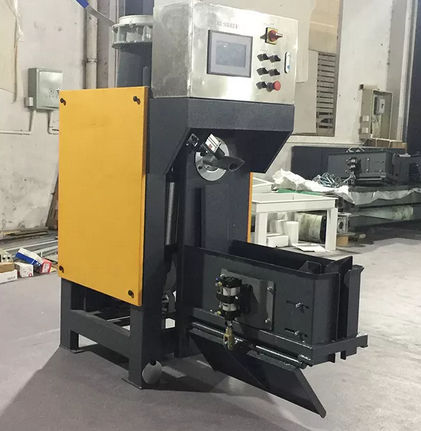

Automatic packing machine

for powdersbagpneumatic

The pneumatic extrusion packing machine is specially used for the valve pocket packaging of powder materials. Suitable for a wide range of packaging materials: suitable for powder, powder and particle, fiber mixture (mortar); Not limited by the fluidity and density differences of packaging materials. The material particle size range is wide, mainly used in putty powder, gypsum powder, tile binder, titanium dioxide, masonry, plastering and other powder good dry mix mortar; In addition, refractory materials and other chemical powders can also be widely used. Parameters: ● Quantitative value: 10-50Kg (error ≤ 150g) ● Packaging speed :≥6-8 bags per minute (Note: Different materials packaging speed is different) ● Packaging material: powder or material orthopedic particles ≤5mm ● Power supply: AC380V+10%; 220V earth 10%(Note: Power supply can be customized) ● Air source: 0.4Mpa~0.8Mpa; 0.2 cubic meters per minute ● Dust removal air volume :≥2000 cubic meters/hour Main advantages: ● Suitable for a wide range of materials, will not cause segregation and other negative effects on the mixed materials; ● Fast packaging speed, high precision, simple operation; ● Includes automatic cleaning function; ● Less dust overflow, high environmental protection; ● Simple structure, advanced design, the use effect has been widely praised. Control System Touch the micro switch to start filling. When the material is filled to the specified weight, the computer of the weighing mechanism sends out a signal, the computer valve works, and the action of the control mechanism makes the cylinder close the discharge port, and the filling stops.
