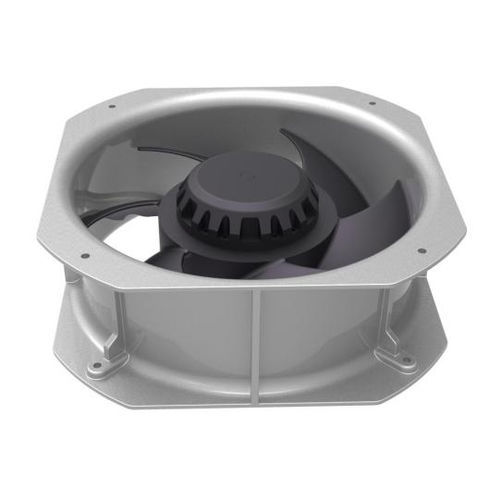

Axial electrical cabinet fan A200P

anti-corrosionextractionfor air circulation

[ High Efficiency ] High strength impeller optimized by ternary flow CFD fluid simulation technology, reasonably designed flow runner combined with ultra-efficient motor create the high efficiency of the fan. [ Low Noise ] The designer closely combines aerodynamics and sound source, and makes the blade angle and blade pattern fully adapt to the ternary flow field, which always ensures lower noise at the same air volume. [ High Reliability ] Motors have F class insulation, and been tested for 3 months of 60℃ high temperature test and 40,000 hours of life test, which ensure worse-free quality. [ Wide Application ] The products is used wherever outstanding performance is required, for example, heat pump, ventilation, cold chain, equipment cooling, IDC small cabinet, high voltage inverter cabinet, energy storage, rail transit and more. [ Variety of Models ] Available in dimensions of : 200mm, 250, 300mm, this allows for air flow rates of up to 3044m3/h and static pressure of up to 250Pa. [ Material ] Impeller: Nylon with fiblerglass / Cold rolled steel [ Bearing ] Maintenance-free Ball bearings [ Approval ] CCC, CE, UL [ Amb.Temp ] -40~+65℃
