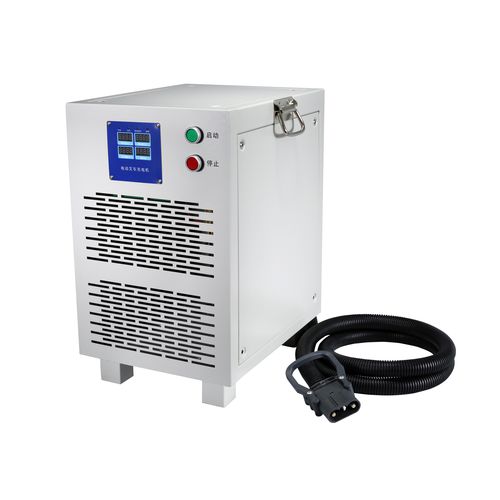

Floor-standing battery charger GGCF-B48V100A

lithiumfor forklift trucksfor railway applications

Summary This series of high frequency charger has high conversion efficiency, stable voltage, high steady current precision and advanced transient response index, smooth output current waveform and small ripple. In addition, due to the use of high frequency switching technology, the power has the characteristics of power saving, easy control, wide range adjustable, small size and light weight. Working principle The charger is mainly composed of a rectifying & filtering circuit, a high-frequency switching conversion circuit, a PWM control circuit, an output rectifying & filtering circuit, a reverse protection circuit, a voltage stabilization & limit circuit,a current stabilization & limit circuit, a protection circuit and an 12V auxiliary power supply circuit. In addition,the charger has CAN-BUS communication function.
