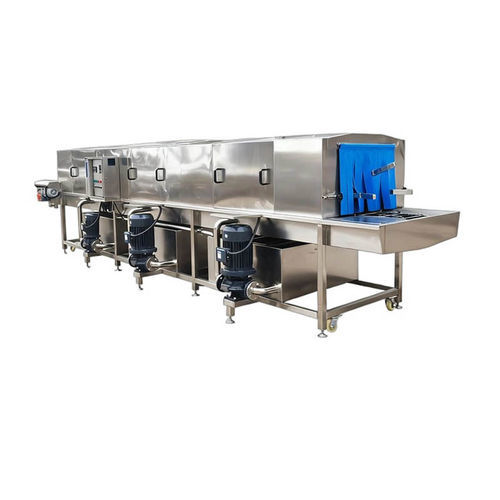

Automatic bin washer

Main specifications:
Overall length: 3–12 m (customizable)
Voltage: 220V / 380V, 50Hz / 60Hz (other on request)
Water pump: 1, 2 or 3 units
Heating: electric or steam
Water tank: 1, 2 or 3
Capacity: 150–500 pcs/h

Introduction:
The crate washer (turnover tray washer) is an automatic container washing system designed to replace manual cleaning. The machine body is manufactured in 304 stainless steel for sanitary operation and corrosion resistance.

• Nozzles are made of food-grade, high-temperature resistant plastic or stainless steel with adjustable spray angles; arranged top, bottom, left and right to eliminate dead zones and ensure thorough cleaning.
• High-quality stainless steel water pumps provide high-pressure spray for complete crate washing.
• Motor speed is adjustable via mechanical stepless control or variable-frequency drive to adapt washing time to product type.
• Adjustable side guardrails accommodate and secure different crate sizes.
• Water heating can be provided by electric elements or steam.

Main Features & Advantages:

• Multi-stage process: pre-wash, wash, rinse.
• Detergent dosing possible in the first or second stage.

Applications:

• Turnover plastic crates/trays/boxes/baskets used in nurseries, meat, vegetables, fruits, bakeries, fish, shrimp, cheese, bread, chocolate, poultry, etc.
• Stainless steel trays used in hospitals or food-processing environments.
• Other containers: plastic pallets, tires, hardware trays, and similar items.

Technical specifications:

• Material: Main body in 304 stainless steel (sanitary, corrosion resistant).
• Overall length: customizable from 3 m to 12 m.
• Power / Voltage options: 220V or 380V; 50Hz / 60Hz; other voltages on request.
• Water pump configuration: selectable 1, 2 or 3 pumps based on required pressure and flow.
• Heating options: electric heating or steam heating for water.
• Water tanks: 1, 2 or 3 tanks selectable for water recovery and staging.
• Capacity range: approximately 150–500 pcs/h (depends on crate size and configuration).
• Nozzle construction: food-grade high-temperature resistant plastic or stainless steel; adjustable spray angles; arranged top/bottom/left/right.
• Motor control: mechanical stepless speed adjustment or variable-frequency drive for precise wash time control.
• Adjustable guardrails: side rails adjustable to accommodate different crate sizes.
