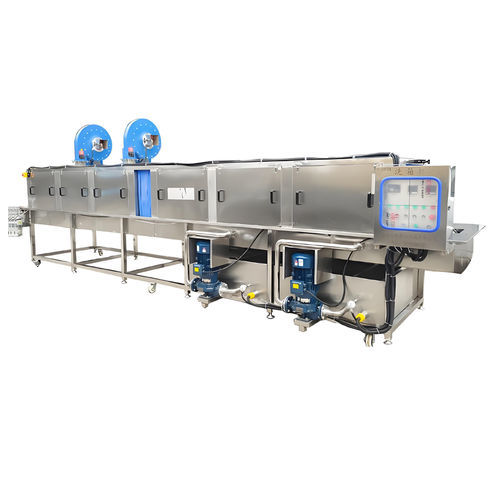

Side-loader bin washer

automatic

Main specifications:

• Overall length: 3-12 m, customizable
• Voltage: 220V/380V, 50Hz/60Hz (other options available)
• Water pump: 1–3 units
• Heating: electric or steam
• Water tank: 1–3 units
• Drying system: fan-assisted (cold or hot air), quantity customizable
• Capacity: 150-500 pieces/h

Introduction:
The Crate Washer Dryer is an automatic industrial washing and drying line designed for crates, trays and baskets used in food processing and related industries. The machine replaces manual cleaning, integrates washing, rinsing, water removal and optional hot-air drying, and is configurable to production flow and hygiene requirements.

Features:

• Construction in 304 stainless steel for food-safe environments
• Nozzles in food-grade high-temperature plastic or stainless steel; adjustable spray angles
• Conveyor speed controlled via stepless or variable-frequency drive to adapt wash time
• Choice of steam or electric heating according to site utilities

Water removal and drying:

• Water removal section uses a high-pressure air knife (driven by a high-power fan) to create flat, high-speed airflow that strips and blows off surface water from all sides
• Optional drying section circulates hot air (typically set between 60-100 °C) to ensure complete drying before downstream processes

Applications:

• Food processing plants: bakery, meat, seafood, fruit and vegetable processing
• Central kitchens and catering production

Technical specifications:

• Model name: Crate Washer Dryer
• Material: 304 stainless steel
• Size: customizable, length 3-12 m
• Voltage options: 220V / 380V, 50Hz / 60Hz (other options available)
• Water pump: 1–3 units
• Water tank: 1–3 units
• Heating: electric or steam
• Drying: fan-assisted (cold or hot air), optional circulating hot air 60-100 °C
• Capacity: 150–500 pieces per hour
• Nozzles: food-grade high-temperature plastic or stainless steel, adjustable angles
• Motor: stepless or variable-frequency speed control
