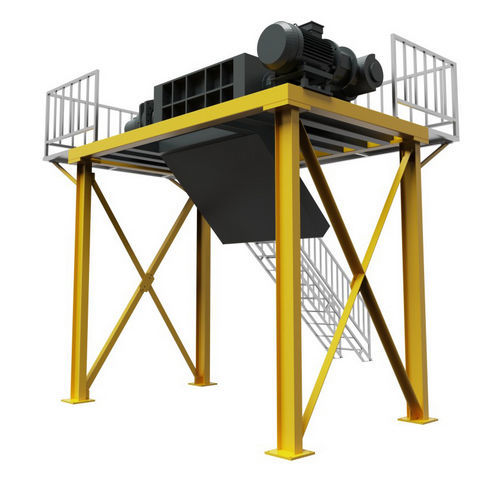

Primary waste crusher-shredder

rugged

The crushing system mainly consists of three parts: crusher, hoist and fully sealed waste residue conveying line. 1) Structural form: The crusher is combined up and down, which is easy to disassemble, maintain and replace, and it is labyrinth-sealed, which effectively protects the bearing. Prevent foreign objects from entering and reduce the failure rate. 2) Crushing capacity: ≥2t/ hour 3) service life of the blade: the material imported from Germany can be repaired once every time it is about 5,000-6,000 tons, and it can be repaired 10 times repeatedly, with a cumulative service life of 44,000-55,000 tons; 4) The crushing capacity should be matched with the disposal capacity, and the equipment adopts double-shaft shear crusher. 5) After crushing, the overhead material receiving method shall be adopted, and the discharge port of the water breaker shall meet the material receiving requirements of the solid waste transfer vehicle to avoid spilling materials. 6) The cutters of the crusher are made of high-performance alloy steel, which can meet the normal production requirements and anti-corrosion function, and are easy to maintain. The service life of each cutter is ≥2 years. 7) When the crusher is jammed or loose, the crusher has the function of automatically eliminating the jammed or loose situation (such as automatic reverse function, automatic compression function and other ways). When the automatic control system cannot eliminate the abnormal situation, the equipment has manual control function. 8) The running state of crusher silo should be equipped with monitoring device and connected to the central control room.
