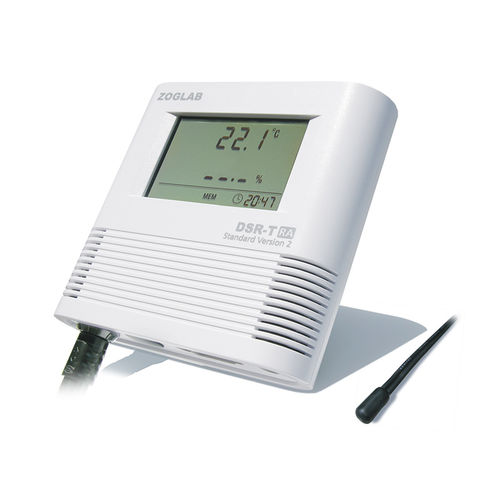

Temperature data-logger DSR-T

USBwirelesswith LCD display

Data Logger for Temperature · Original medical probe being resistant to low temperature and free of toxicity and halogen · Outstanding measuring resolution even in low temperature · Original fittings for sensor connection, ensures 100,000 plugs · Support single DSR connecting to PC via USB interface, and multiple DSR grouped in RS485 or LAN networking for central management · Suitable for refrigerator, cold storage, refrigerator cars, constant temperature box, cold-chain cargo and other applications Measuring Data T Measuring Range: -45℃~105℃ T Accuracy: ±0.5℃(-45℃~70℃) / ±0.6℃(70℃~105℃) T Resolution: 0.1℃/0.2℉ General Memory Size: 10,918[A] / 21,840[B] / 180,000[C] / 360,000[D]values Alarm: High level and low level, display+beep+backlight Sampling Interval: 2s、5s、10s、30s、60s、255s Logging Interval: 2seconds~24hours Start with Delay Time: 1~120s Start Mode: Start immediately / Time-lapse start / Timing start End Mode: Full / FIFO / Presetting units / Timing end Timing Start / End: Random start / End with format YYMMDD HHMMSS Storage Temperature: -50℃~90℃ ESD Protection: ±25KV Interface: RS232 / RS485[R] / USB[U] / LAN[L] / Wireless [W、B、Z、F、G] Battery: 3.6V lithium battery ×1 Battery Lifetime: Typical 1year (with a sample rate of 10 seconds),5 years （in sleep mode） RTC Battery: CR2032 Clock Accuracy: <12 mins/year External voltage: 5~24V DC Software: ANALYSIS IP Class: IP54 Sensing Probe Model: Original low temperature resistant probe Dimensions: 5×6×14.5mm Wire: 2×4×3000mm,low-temperature and corrosion resistant General Feature Dimensions: 123×117.3×33.4mm Display Area: 66×42mm Housing: ABS+PC,flame-retardant,toxicity and halogen free Weight: 305g
