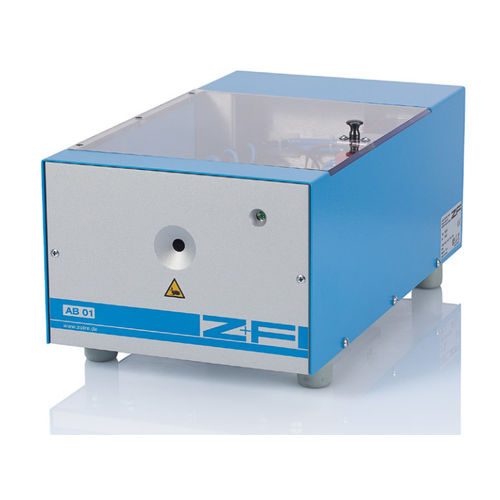

Electrical cable stripping machine Z+F AB 01rotary bladepneumatic
Add to favorites
Compare this product
Characteristics
- Product to be stripped
- for electrical cables
- Technology
- rotary blade
- Other characteristics
- pneumatic
- Diameter
Max.: 12 mm
(0.47 in)Min.: 4 mm
(0.16 in)
Description
Technical information
The dismantling machine AB 01 is an electropneumatic driven machine. Exact dismantling
of different insulated wires up to an outside diameter of 11.9 mm is possible.
Settings are very easy to adjust.
Dismantling area:
3,5 – 11,9 mm
(0.14 - 0.47 in.)
Dismantling length:
25 – 115 mm
(0.98 - 4.53 in.)
Pull-off length:
20 – 120 mm
(0.79 - 4.72 in.)
Infeed length:
80 mm
(3.15 in.)
Cycle time:
ca. 3 s
Power supply:
100 – 240 / 50 – 60 / 16
V/Hz/VA
Air pressure:
5,5 bar
(79.77 psi)
Dimensions (w x d x h):
254 x 230 x 520 mm
(10 x 9.06 x 20.5 in.)
Weight:
17 kg
(37.48 lbs)
Order specifications V10AB000004
