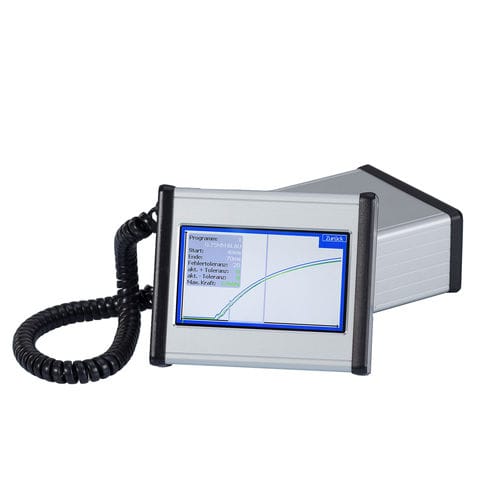

Force monitoring system Z+F CK 01

for crimpingautomatic

Z+F Crimp force monitoring CK 01 Technical information Product information Designed specifically for the machines of the AM-/CR-series of Zoller + Fröhlich the crimp force monitoring CK 01 is an integrated component for the automatic monitor of crimping operations and thus ensures high quality crimping products. The crimp force monitoring CK 01 can be directly integrated into the machines from Zoller + Fröhlich or installed externally as a retrofit kit. Special features Precise high-speed, crimp force analysis For wire cross-sections from 0.14mm2 – 6 mm² (AWG 26 – 10) Integrated SPC (Static Process Control) with online option Absolute power measurement in Newton [N] TFT-graphic-colour-display with touchscreen Storing up to 50 different programs and parameters Quality assurance through documentation of each crimp Recognize the following crimp faults Missing strands Improper wire gauge Missing crimp contact Inadequate stripping Improper crimp depth USP An integrated component for the automatic monitor of crimping operations Ensures high quality crimping products Can be directly integrated into the machines from Zoller + Fröhlich or installed externally as a retrofit kit Precise high-speed, crimp force analysis Detecting crimping errors For wire cross-sections from 0.14 – 6 mm² (AWG 26 – 10)
