Ball bearing
radialaxialsteel

ball bearing
ball bearing
ball bearing
Add to favorites
Compare this product


Characteristics

Rolling element
ball
Configuration
radial, axial
Material
steel
Other characteristics
high-precision, combined
Applications
for CNC rotary tables

Description

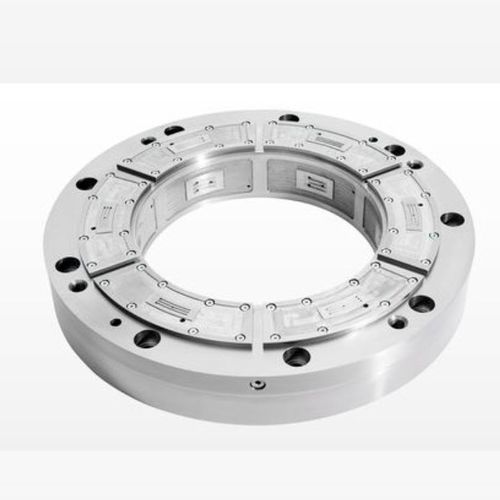

The combined, hydrostatic radial-axial bearings from ZOLLERN impress with their simplicity and a high concentricity and axial runout accuracy. Thanks to the patented bearing clearance compensator, the optimal pocket pressure is set automatically and independently of production tolerances. The integrated oil distribution makes external piping unnecessary. The freedom from friction at low speeds prevents slip stick and therefore allows maximum positioning accuracy. Combined radial-axial bearing The optimal pocket pressure sets itself regardless of production tolerances The patented bearing clearance compensator works without susceptible capillaries or controllers Delivery with complete hydraulic system and control system optional Composite casting bearing with special emergency running properties Advantages Calculative unlimited service life No ball reversal jump due to rolling element deflections when the direction of rotation is reversed Friction-free at low speeds; no stick-slip effect Concentricity and axial runout accuracy < 1 µm Greater bearing stiffness than with conventional restrictor systems
